Product Details:
|
| Model Name: | Cassette Modules MTP/MPO Fiber Breakout Cable | Fiber Mode: | OS2 9/125 μm |
|---|---|---|---|
| Fiber Count: | 12 Fiber | Front Connector Type: | 6 X LC Duplex |
| Rear Connector Type: | 1 X MPO-12 Male (Pinned) | Test Wavelength: | 850/1300nm |
| Fiber Length: | 1m,3m,5m Or OEM | Polarity: | Type A |
| 10G Ethernet Distance: | 400m At 850nm | 40/100G Ethernet Distance: | 150m At 850nm |
| Highlight: | MPO Fiber Breakout Cable Cassette,6xLC Duplex Mpo Cassette Patch Panel,12 Fiber Mpo To Lc Cassette |
||

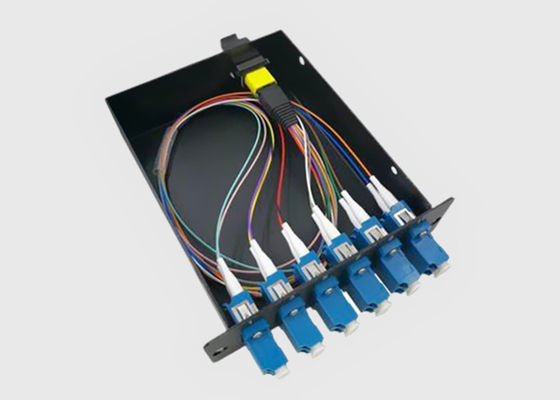

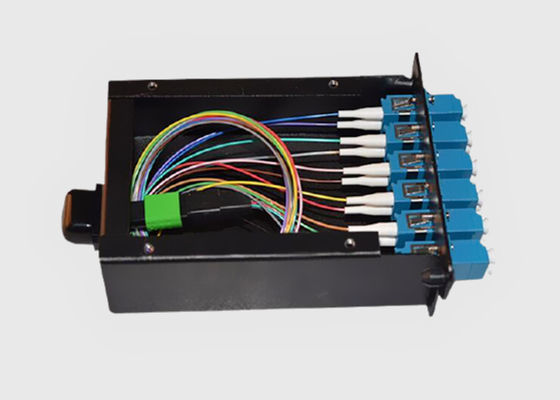

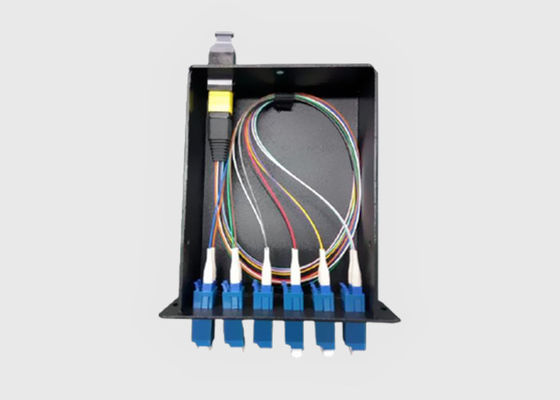

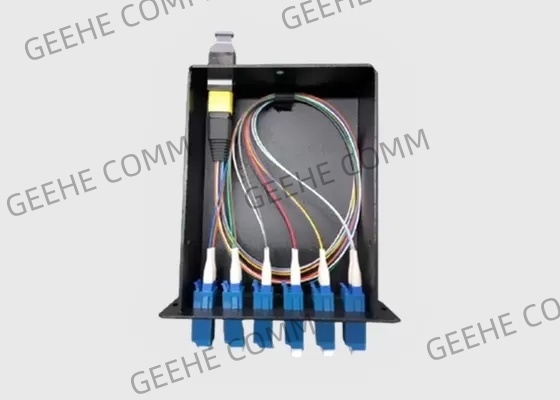

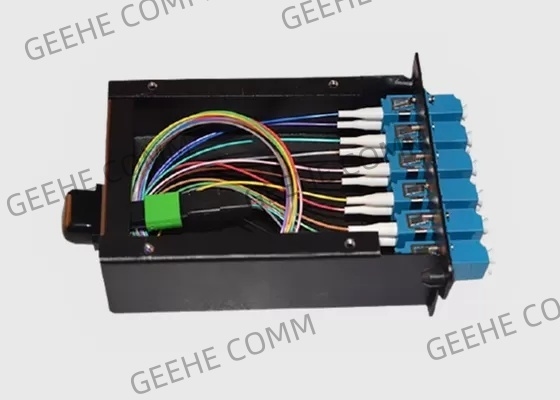

12 Fiber Pre-installed 6 Duplex LC Adapters MTP/MPO Fiber Breakout Cable
Basic Information:
Our 10GB OM4 MPO cassettes with 12 LC connectors are manufactured with high density, space-saving pre-terminated, and tested MPO to LC breakout cables designed for data centers, storage networks, and local area networks with minimal training. They are used to interconnect MPO/MTP backbones with LC patch cords. Available in MultiMode OM1 (62.5/125), OM3 / OM4 (50/125), & SingleMode OS2 (9/125).
Complaint to TIA/EIA-568-C.3 and ISO/IEC 11801 and IEC-61754-7 & EIA/TIA-604-5 - MTP/MPO.
Features&Benefits:
High-density easy-plug cassette modules
-- Mounts up to 96-fiber per 1U, 384-fiber per 4U rackmount patch panel
Plug-&-play MTP/MPO cabling solution
-- Flexible for integration with Optec's rackmount patch panel
Ease of installation and good traceability
-- Channel label and data label printed with insertion loss value for each port
Qualified performance beyond TIA/EIA and IEC standards
-- Pre-installed with factory-terminated and factory tested MTP/ MPO to LC hydra assembly
Simple to use, convenient installation
-- Pre-installed with fiber MTP/MPO adapters at the rear and LC adapters in the front panel
Field terminations Elimination
-- Reduces labor cost and improves cabling manageability
Specifications and Parameter:
16F MPO Fiber Optic Performance:
| MPO Connector | Standard Sm | Low Loss Sm | Standard Mm | Low Loss Mm | |
| Insertion Loss | Typical(dB) | 0.35 | 0.2 | 0.35 | 0.2 |
| Maximum(dB) | 0.75 | 0.35 | 0.6 | 0.35 | |
| Return Loss (dB) | ≥60 for APC (8 angle polish) |
≥20 for PC | |||
| ≥50 for PC | — | ||||
| Male/Female(dB) | Male:with pins,Female:without pins | ||||
| Tensile Strength (dB) | ≤0.3 ( max 66N ) | ||||
| Vibration (dB) | ≤0.3 ( 10-55Hz ) | ||||
| Thermal Cycle (dB) | ≤0.3 (-40~75℃, 21cycles) | ||||
Geometric parameter of end-face:
| Item | Spec | ||||
| SM | MM | ||||
| RX(mm) | MIN 2000 | ||||
| RY(mm) | MIN 5 | ||||
| Fiber Height (nm) | 1000-3500 | ||||
| Max. diff. Height all (nm) | MAX: 500 | ||||
| Max. diff. Height adj (nm) | MAX: 300 | ||||
| X-Axis Angle ( °) | -0.2 ~ 0.2 | ||||
| Y-Axis Angle ( °) | PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2 |
-0.2 ~ 0.2 | |||
| Core Dip | N/A | -100 ~ 200 | |||
Ordering Information:
MC-2xMPO/M-12xDLC-24OM3-A: MPO Fiber Optic Cassette, 2x MPO-12 Male to 12x LC/UPC Duplex, 24 Fibers Multimode OM3, Type A, Key up-Key down
| MPO | -XX | -XX | -XX | -X | -XX | -X | -XX |
| A1: G657A1 A2: G657A2 M3: OM3 M4: OM4 M5: OM5 |
LZ: LSZH NP: OFNP NR: OFNR |
FF: MPO /MPO(female to female ) MF: MPO/MPO (male to a female) MM: MPO/MPO (male to male) |
L: Low loss B: Standard loss |
12:1×12 core 48:4×12 core 72:6×12 core 96:8×12 core |
A: TIA568 through-type B: TIA568 Reverse type C: TIA568 cross-type |
5M to 50M |
|
| Gender Type | Housing color | Ferrule | Connector loss standard | Fiber cores | Polarity | Fiber length |
