Product Details:
|
| Model Name: | 12×LC Duplex Fiber Optic EXchange Cassette | Fiber Mode: | OS2 9/125 μm |
|---|---|---|---|
| Fiber Count: | 24 Fiber | Front Connector Type: | 12 X LC Duplex |
| Rear Connector Type: | 1 X MPO-24 Male (Pinned) | Test Wavelength: | 850/1300nm |
| Fiber Length: | 1m,3m,5m Or OEM | Polarity: | Type A |
| 10G Ethernet Distance: | 400m At 850nm | 40/100G Ethernet Distance: | 150m At 850nm |
| Highlight: | 12×LC Fiber Optic Exchange Cassette,12×LC Duplex Fiber Patch Panel Cassette,MPO 12×LC Fiber Patch Panel Cassette |
||

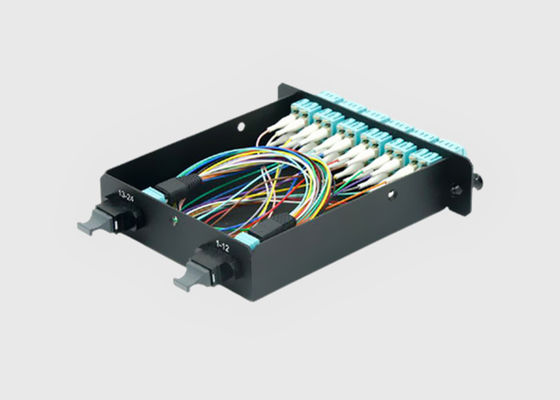

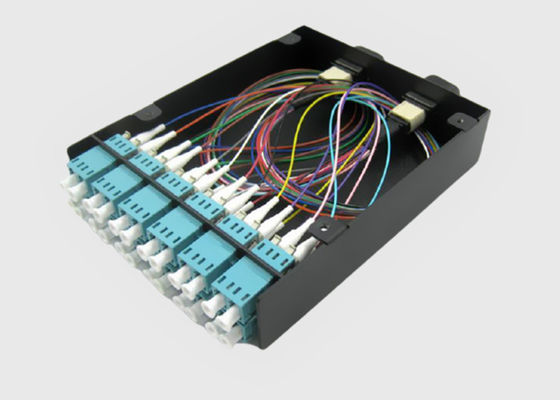

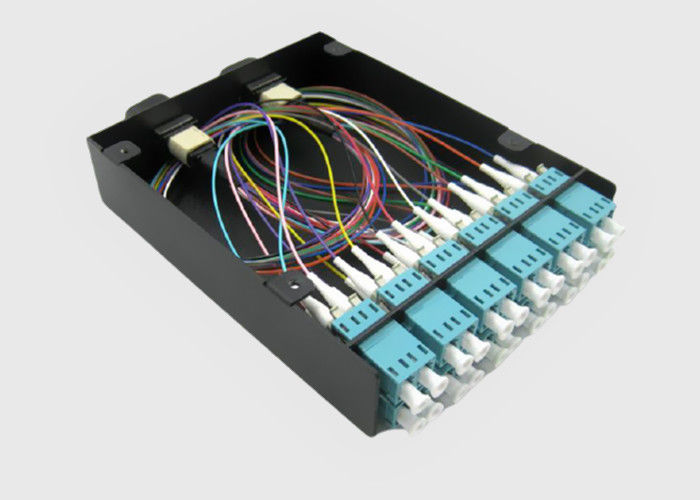

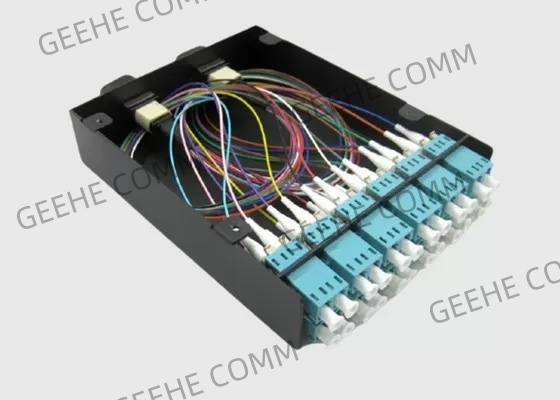

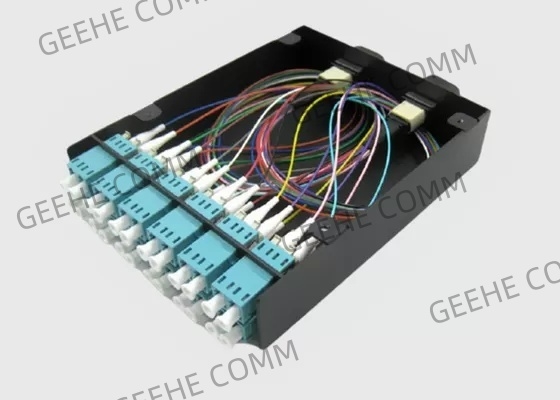

MTP/MPO Fiber Breakout Cable 12×LC Duplex Fiber Optic EXchange Cassette
Basic Information:
MPO Fiber Optic eXchange Cassette accepts all types of cordage to eliminate splice trays and terminate cables into cassettes quickly, safely, and elegantly. The white ABS body gives excellent visibility for fiber colors and the removable splice shuttle makes installation much more convenient. The eXchange Cassette features wall-mounting holes in the body allowing the user to mount anywhere.
In addition to accepting all cable types (including Air Blown Fiber tubes), the entry points double as MPO adapter ports giving the flexibility to convert the cassette into an MPO cassette. The LC adapters are shuttered and the faceplate can be removed even after installation into a patch panel allowing for easy cleaning or repair of the internal connectors.
Features&Benefits:
–Plug and play design for rapid and easy installation
–PC+ABS material to ensure lightweight, and good sealing performance, strong enough
–It is tool-less to assemble the module
–Good appearance, cost down for large batch
–Factory terminated and 100% test to ensure the performance and reliability
–Proper design to ensure the bend radius and in small size
–Have space for labeling, with 12 LC duplex adapter
Specifications and Parameter:
16F MPO Fiber Optic Performance:
| MPO Connector | Standard Sm | Low Loss Sm | Standard Mm | Low Loss Mm | |
| Insertion Loss | Typical(dB) | 0.35 | 0.2 | 0.35 | 0.2 |
| Maximum(dB) | 0.75 | 0.35 | 0.6 | 0.35 | |
| Return Loss (dB) | ≥60 for APC (8 angle polish) |
≥20 for PC | |||
| ≥50 for PC | — | ||||
| Male/Female(dB) | Male:with pins,Female:without pins | ||||
| Tensile Strength (dB) | ≤0.3 ( max 66N ) | ||||
| Vibration (dB) | ≤0.3 ( 10-55Hz ) | ||||
| Thermal Cycle (dB) | ≤0.3 (-40~75℃, 21cycles) | ||||
Geometric parameter of end-face:
| Item | Spec | ||||
| SM | MM | ||||
| RX(mm) | MIN 2000 | ||||
| RY(mm) | MIN 5 | ||||
| Fiber Height (nm) | 1000-3500 | ||||
| Max. diff. Height all (nm) | MAX: 500 | ||||
| Max. diff. Height adj (nm) | MAX: 300 | ||||
| X-Axis Angle ( °) | -0.2 ~ 0.2 | ||||
| Y-Axis Angle ( °) | PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2 |
-0.2 ~ 0.2 | |||
| Core Dip | N/A | -100 ~ 200 | |||
Ordering Information:
MC-2xMPO/M-12xDLC-24OM3-A: MPO Fiber Optic Cassette, 2x MPO-12 Male to 12x LC/UPC Duplex, 24 Fibers Multimode OM3, Type A, Key up-Key down
| MPO | -XX | -XX | -XX | -X | -XX | -X | -XX |
| A1: G657A1 A2: G657A2 M3: OM3 M4: OM4 M5: OM5 |
LZ: LSZH NP: OFNP NR: OFNR |
FF: MPO /MPO(female to female ) MF: MPO/MPO (male to a female) MM: MPO/MPO (male to male) |
L: Low loss B: Standard loss |
12:1×12 core 48:4×12 core 72:6×12 core 96:8×12 core |
A: TIA568 through-type B: TIA568 Reverse type C: TIA568 cross-type |
5M to 50M |
|
| Gender Type | Housing color | Ferrule | Connector loss standard | Fiber cores | Polarity | Fiber length |
MPO Cassette Application:
Geehe's Standards Compliance :
RoHS certificate:
