Product Details:
|
| Model Name: | Mpo Connectors Optical Fiber | Fiber Core: | 8 Core, 12 Core Or 24 Core |
|---|---|---|---|
| Fiber Diameter: | 3.0MM | Connector Type: | MTP,MPO , MTP (Elite),MPO (Elite) |
| Jacket Color: | Beige/Aqua/Green/Yellow,etc | Fiber Jacket Material: | Riser (OFNR), Plenum (OFNP), LSZH |
| Fiber Length: | 1m Or As Your Request | Fiber Type: | Single Mode (OM3, OM4, OM5 Are Optional) |
| Wavelength: | 850nm/1310nm/1550nm | Application: | Optical Amplifiers,fiber Laser |
8F OM4 2mm OD MPO(F)-MPO(F) type B OFNP low loss 13m
Brief Description:
* Insertion loss type available in Standard, Elite / Low Loss
* Fiber count available in 8, 12, 24, 48 cores
* MTP/MPO connector type available in:Male, Female, Male to Female
* Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
* Cable jacket type available in OFNR, LSZH, OFNP
* Multi-fiber connector types are available in MTP, MPO with APC or PC polishing type
* Cable length available in 1 to 999 meters, customization
* Cable type available in round, ribbon
* Improve and simplify fiber routing, decrease fiber management space
* Conforms to IEC-61754-7; EIA/TIA-604-5 (FOCIS 5) standards.
Main Features& Benefits:
* MPO Connector with Angled Boot
* Ideal for round, oval and bare ribbon fiber cable assembly
* High-performance IL & RL
* Housing can be removed for re-polishing
* Can be unplugged from the adapter with push-pull tab
* Available for 45-degree, 90-degree, and flexible boot
* High mechanical and thermal resistance
Specifications and Parameter:
Fiber Optic Performance:
| MPO Connector | Standard Sm | Low Loss Sm | Standard Mm | Low Loss Mm | |
| Insertion Loss | Typical(dB) | 0.35 | 0.2 | 0.35 | 0.2 |
| Maximum(dB) | 0.75 | 0.35 | 0.6 | 0.35 | |
| Return Loss (dB) | ≥60 for APC (8 angle polish) | ≥20 for PC | |||
| ≥50 for PC | — | ||||
| Male/Female(dB) | Male:with pins,Female:without pins | ||||
| Tensile Strength (dB) | ≤0.3 ( max 66N ) | ||||
| Vibration (dB) | ≤0.3 ( 10-55Hz ) | ||||
| Thermal Cycle (dB) | ≤0.3 (-40~75℃, 21cycles) | ||||
Geometric parameter of end-face:
| Item | Spec | ||||
| SM | MM | ||||
| RX(mm) | MIN 2000 | ||||
| RY(mm) | MIN 5 | ||||
| Fiber Height (nm) | 1000-3500 | ||||
| Max. diff. Height all (nm) | MAX: 500 | ||||
| Max. diff. Height adj (nm) | MAX: 300 | ||||
| X-Axis Angle ( °) | -0.2 ~ 0.2 | ||||
| Y-Axis Angle ( °) | PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2 | -0.2 ~ 0.2 | |||
| Core Dip | N/A | -100 ~ 200 | |||
Ordering Information:
| MPO | -XX | -XX | -XX | -X | -XX | -X | -XX |
| A1: G657A1 A2: G657A2 M3: OM3 M4: OM4 M5: OM5 | LZ: LSZH NP: OFNP NR: OFNR | FF: MPO /MPO(female to female ) MF: MPO/MPO (male to a female) MM: MPO/MPO (male to male) | L: Low loss B: Standard loss | 12:1×12 core 48:4×12 core 72:6×12 core 96:8×12 core | A: TIA568 through-type B: TIA568 Reverse type C: TIA568 cross-type | 5M to 50M | |
| Gender Type | Housing color | Ferrule | Connector loss standard | Fiber cores | Polarity | Fiber length |
Application:
Applications & Associated Standards
Array trunk cables
Array fiber to single fiber fanouts and cassettes
High fiber density card edge access
Optical switching interframe connections

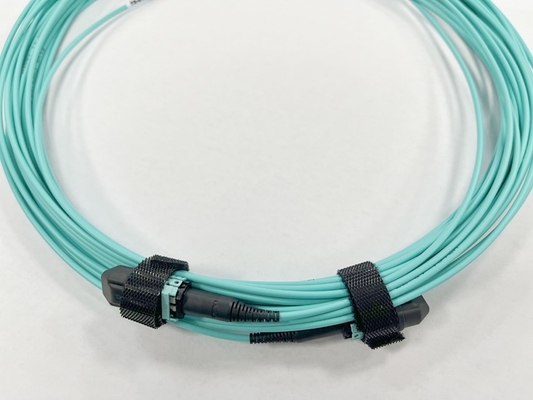

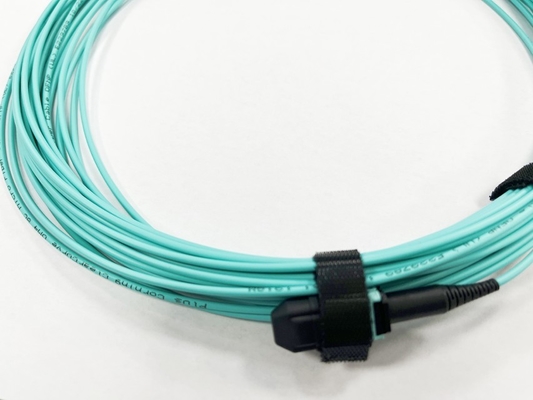

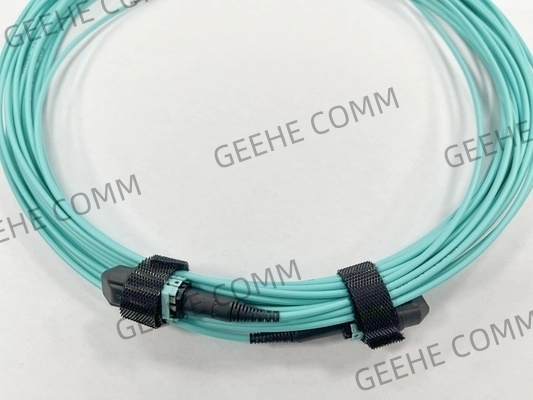

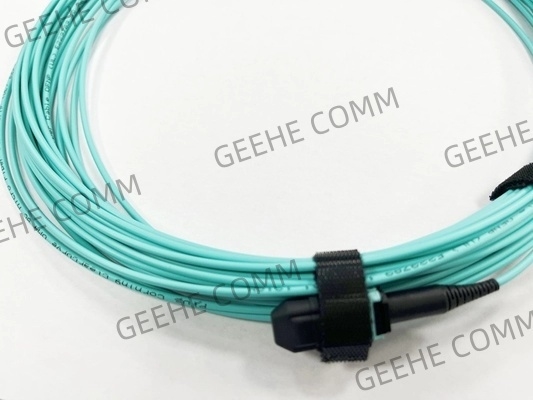

MPO Picture:
