Product Details:
|
| Model Name: | Fiber Optic Connector Lc | Connector Type: | SC/FC/LC/ST/MTRJ/MU/MPO Ect |
|---|---|---|---|
| Ferrule End-face: | PC,UPC,APC | Fiber Type: | Singlemode, Multimode |
| Color: | Blue,Green,Grey,Aqua,Purple Etc | Cable Applicable: | 3.1 X 2.0 Mm Drop Cable |
| Installation Time: | Within 60s ( No Fiber Cut ) | Sleeve: | Caremic/Phosphor Bronze |
| Highlight: | 2.0mm LC Fiber Optic Connector,50/125 LC Fiber Optic Connector,50/125 duplex fiber connector |
||

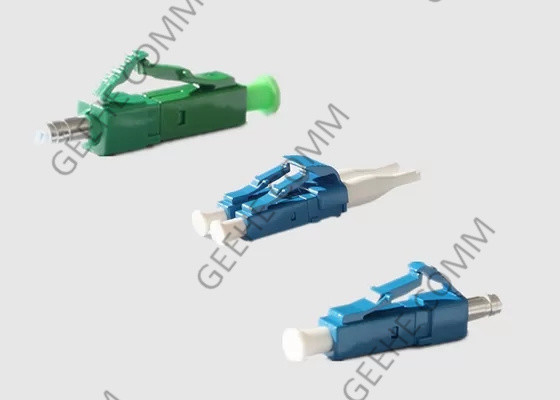

50/125 Simplex Duplex Fiber Optic Connector LC For Telecommunication
Brief Introduction:
Geehe mechanical splice connectors ensure precise fiber alignment, producing low loss terminations for all multimode or single-mode applications.
Fiber Optic connectors are compatible with 900μm, 2.0, or 3.0mm fiber optic cabling. Our exclusive hinge-based design and large verification windows allow for easy confirmation of successful termination.
Simplex LC fiber connectors are often used for fiber optic pigtails or fiber patch cord making. You can also use it to add connectors for fiber optic splitters. Samples are Free to support you.
Fiber Optic connectors Features and Advantages:
Best in class optical performance connectors
Only 2 minutes tops per fiber for installation reduces labor cost
ST, SC, LC connectors for easy, fast, and reliable fiber termination
No polishing, no epoxy, no power cords, or polishing films are required
The patentedhigh precision ceramic ferrule is 100% tested to meet insertion loss
Excellence guaranteed .1 typical dB/.5 dB maximum insertion loss per connector pair
Application of LC Connector:
LC connectors can be found in many places for termination and connection, especially SFP transceivers for gigabit transmission.
Telecommunication networks
Local area networks
Data processing networks
Cable television
Fiber-to-the-home
Premises distribution
Technology Specification& Parameters:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3； MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥50 | ≥50 |
| MM | dB | ≥36(Exclusive APC Connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
Order Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
LA:FC/APC LC:FC/UPC LP:FC/PC | LA:FC/APC LC:FC/UPC LP:FC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |

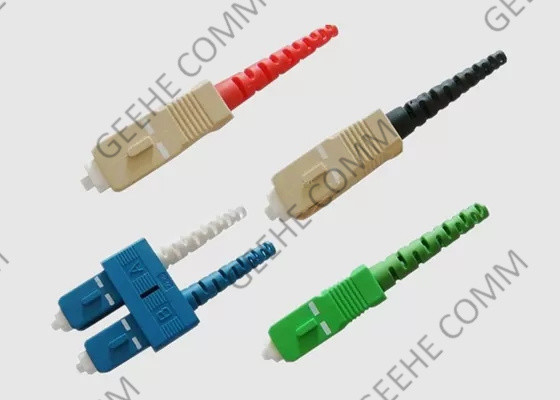

More fibre optic connector types:
