Red Single Mode 0.9mm ST Fiber Optic Connector

Large Image : Red Single Mode 0.9mm ST Fiber Optic Connector

Product Details:

Place of Origin:	Wuhan,China
Brand Name:	Wuhan Geehe
Certification:	ISO9001:2015,ISO14001:2015,RoHS
Model Number:	GH-FC-LC-0017

Payment & Shipping Terms:

Minimum Order Quantity:	500 pcs
Price:	Negotiation
Packaging Details:	Plastic box per pc with Pressure defense sponge, outer carton
Delivery Time:	Within 3-5 working days after confirm order
Payment Terms:	T/T, D/P, D/A, Western Union, MoneyGram,LC
Supply Ability:	8,000 pcs per day

Contact Now

Red Single Mode 0.9mm ST Fiber Optic Connector

Description

Model Name:	ST Fiber Optic Connector	Connector Type:	SC/FC/LC/ST/MTRJ/MU/MPO Ect
Ferrule End-face:	PC,UPC,APC	Fiber Type:	Singlemode, Multimode
Color:	Blue,Green,Grey,Aqua,Purple Etc	Cable Applicable:	3.1 X 2.0 Mm Drop Cable
Installation Time:	Within 60s ( No Fiber Cut )	Sleeve:	Caremic/Phosphor Bronze
Highlight:	0.9mm ST Fiber Optic Connector , 0.9mm single mode fiber connectors , 0.9mm optical fiber connector

ST Red Color Size Singlemode/Multimode 0.9mm Fiber Optic Connector

Brief Introduction :

Geehe supplies various kinds of Single Mode and Multimode fiber optic connectors for ST applications. Each fiber optic connector is functionally tested before shipping and is covered by a lifetime warranty.

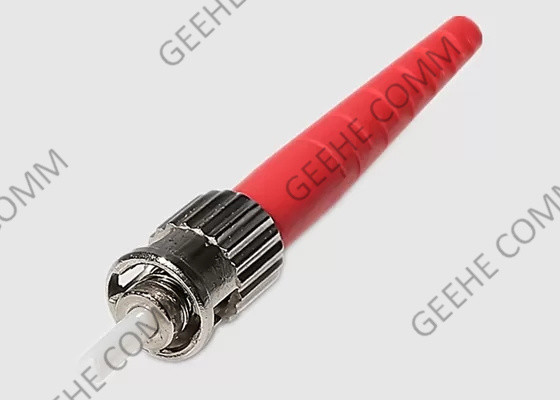

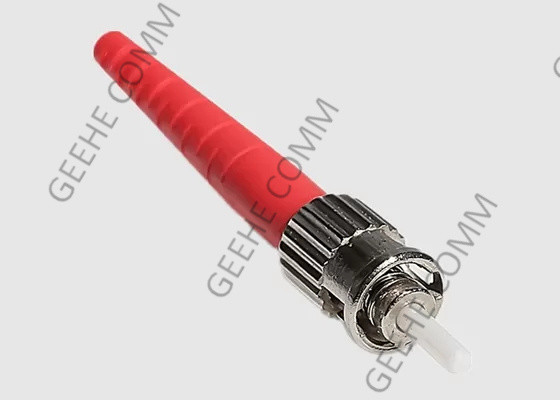

The ST optical fiber connector comprises a nickel-plated brass body and a ceramic ferrule/spring/crimp barrel assembly plus a crimp over sleeve and rubber boot. These connectors are suitable for 900μm and 2-3mm cables. The connector is precision made and manufactured to demanding specifications.

Connectors are suitable for use with two-part heat curing epoxies and cold cure anaerobic adhesives.

Red Single Mode 0.9mm ST Fiber Optic Connector 0

Fiber Optic connectors Features and Advantages:

Low Insertion Loss and High Return Loss capability;
Precision anti-rotation key for mechanical stability/repeatability
Nickel-plated metal body corrosion resistant
Ultra-low back reflection
High quality ceramic components and Material
End-face geometry requirement complies to Telcordia GR-326-CORE
100% tested on optical performance (Insertion Loss & Return Loss)
Simplex, duplex, and higher core densities.
900 micron, 2mm, 3mm cable applications.

Application of ST Connector :

Telecommunication networks
Local area networks
Data processing networks
Distribution application; Premises distribution
The construction of the fiber end-user access and maintenance.
Optical fiber access of mobile base station

Technology Specification& Parameters:

Parameter		Unit	Index
End-Face Type			PC	UPC	APC
IL		dB	SM: ≤0.3；MM ≤0.1
Repeatability		dB	≤0.1
Interchangeability		dB	≤0.2
RL	SM	dB	≥50	≥55	≥60
	MM	dB	≥36(Exclusive APC Connector)
Mating Times			＞1000
Operating Temperature		℃	-40~ +80

Order Information:

OFC	-X	-XX	-XX	-XX	-X	-X
	S: Simplex D: Duplex	SA:ST/APC SC:ST/UPC SP:ST/PC	SA:ST/APC SC:ST/UPC SP:ST/PC	09:0.9mm 20:2.0mm 30:3.0mm	0:G652D 1:G657A 2:50/125 3:62.5/125 4:others	0.5:0.5m 1.0:1.5m 10:10.0m
	Fiber Mode	Connector Type	Connector Type	Cable Diameter	Fiber Type	Fiber Length

More fiber optic connector types:

Red Single Mode 0.9mm ST Fiber Optic Connector 1

Geehe Comm Service:

Provide the highest quality of products
Continuous improvement; accepting new challenges
Innovating new processes, and creating new products for the benefit of our customers
Consultative service and strive to ensure a positive and productive experience
Efficient use of all transportation modes and transit times
Greater visibility and real-time information
Free samples for customers, all customers are a welcome, never small business
