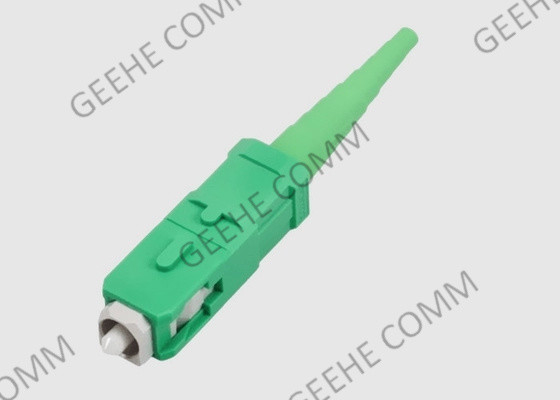

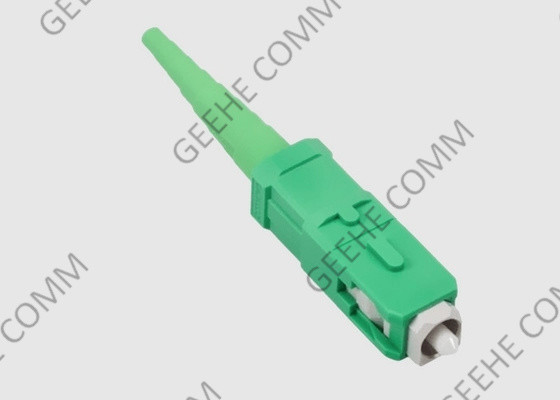

Product Details:
|
| Model Name: | Fiber Optics Connector SC/APC Simplex | Connector Type: | SC/FC/LC/ST/MTRJ/MU/MPO Ect |
|---|---|---|---|
| Ferrule End-face: | PC,UPC,APC | Fiber Type: | Singlemode, Multimode |
| Color: | Blue,Green,Grey,Aqua,Purple Etc | Cable Applicable: | 3.1 X 2.0 Mm Drop Cable |
| Installation Time: | Within 60s ( No Fiber Cut ) | Sleeve: | Caremic/Phosphor Bronze |
| Housing: | Blue 9/125 Singlemode | Fiber Cable: | 0.9mm,2.0mm,3.0mm |
| Highlight: | 2.0mm Fiber Optic Connector,SC/APC Fiber Optic Connector,2.0mm SC APC Fiber Optic Connector |
||
SC/UPC Multimode Simplex Connector with 0.9mm White Boot - Beige
Brief Introduction:
Single mode SC/APC epoxy-polish connectors are specially designed to provide low insertion loss and back reflection, along with high precision and mechanical stability
SC fiber optic connectors are used for equipment cross-connects or interconnect in the backbone, horizontal and work area application.
Possible to directly splice with drop cable & Indoor cable.
Fiber Optic connectors Features and Advantages:
Notes for Fiber Optic Connector Installation:
Besides different installation methods for different connector types, several things need to be paid attention to when installing fiber optic connectors, especially when a fiber patch cord has two different types of connectors, such as LC-SC fiber optic patch cord or FC-ST fiber optic patch cord.
The bared fiber must be thoroughly cleaned with fiber optic cleaning fluid. Never clean the fiber with dry tissue. Before the connection is made, the end of each fiber must have a smooth finish that is free of defects such as hackles, lips, and fractures.
The cable should be cut about one inch longer than the required finished length.
Be sure to use strippers made specifically for use with fiber rather than metal wire strippers because damage can occur and then weaken the fiber.
ST Connector Application of SC Connector:
Technology Specification& Parameters:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥55 | ≥65 |
| MM | dB | ≥36(Exclusive APC Connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
Order Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SA:SC/APC SC:SC/UPC SP:SC/PC | SA:SC/APC SC:SC/UPC SP:SC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
More Fibre Optic Connector Types:
