Product Details:
|
| Model Name: | 2.0mm ST Fiber Optic Connectors | Connector Type: | SC/FC/LC/ST/MTRJ/MU/MPO Ect |
|---|---|---|---|
| Ferrule End-face: | PC,UPC,APC | Fiber Type: | Singlemode, Multimode |
| Color: | Blue,Green,Grey,Aqua,Purple Etc | Cable Applicable: | 3.1 X 2.0 Mm Drop Cable |
| Installation Time: | Within 60s ( No Fiber Cut ) | Sleeve: | Caremic/Phosphor Bronze |
| Housing: | Blue, Black 9/125 Singlemode | Fiber Cable: | 0.9mm,2.0mm,3.0mm |
| Highlight: | 2.0mm Single Mode ST Connector,Black Boots Single Mode ST Connector,2.0mm st type fiber optic connector |
||

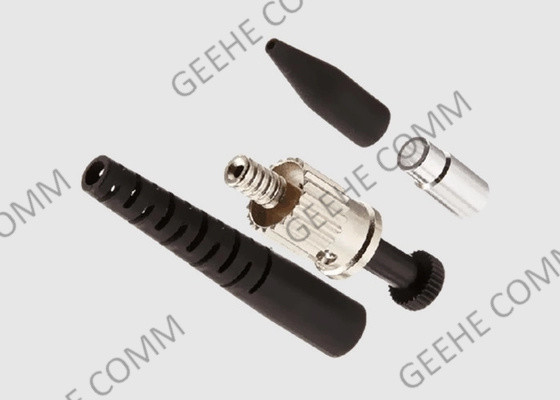

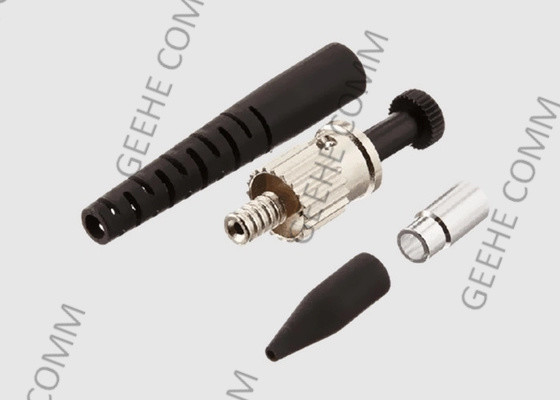

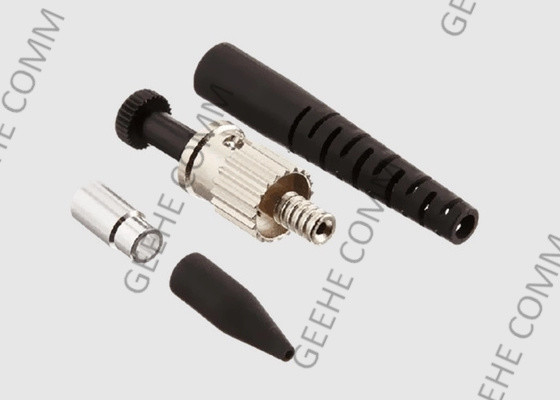

Single Mode Simplex 2.0mm ST Fiber Optic Connectors with Black Boots
Brief Introduction:
Fiber optic connectors are used for terminating the end of an optical fiber, which as we all know, are an important telecommunication medium, while also being a necessity for computer networking. For this reason, they have witnessed significant deployment in the high bandwidth communication technology, and other associated network broadcast & telecom technologies that drive modern-day media & connectivity segment. When compared to splicing, optical fiber connectors offer quicker connection and disconnection. The demand for fiber optic connectors is a subsequent result of the growing adoption of fiber optic technology.
ST Connector - Has a ferrule diameter of 2.5 mm. Most ferrules are ceramic, but some are metal or plastic. They are spring-loaded. Their usage has declined for the past many years, but they are still seen in infrastructures that were built at the turn of the 21st century.
ST Fiber Optic connectors Features and Advantages:
Notes for Fiber Optic Connector Installation:
1) Besides different installation methods for different connector types, several things need to be paid attention to when installing fiber optic connectors, especially when a fiber patch cord has two different types of connectors, such as LC-SC fiber optic patch cord or FC-ST fiber optic patch cord.
2) The bared fiber must be thoroughly cleaned with fiber optic cleaning fluid. Never clean the fiber with dry tissue. Before the connection is made, the end of each fiber must have a smooth finish that is free of defects such as hackles, lips, and fractures.
3) The cable should be cut about one inch longer than the required finished length.
4) Be sure to use strippers made specifically for use with fiber rather than metal wire strippers because damage can occur and then weaken the fiber.
Application of SC Connector:
ST Connectors Technology Specification& Parameters:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥55 | ≥65 |
| MM | dB | ≥36(Exclusive APC Connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
Order Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
FA:FC/APC FC:FC/UPC FP:FC/PC | FA:FC/APC FC:FC/UPC FP:FC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
