Product Details:
|
| Model Name:: | Pigtail For Fiber Optic Cable | Fiber Mode: | OS2 9/125 μm |
|---|---|---|---|
| Fiber Count: | Simplex | Cable Jacket: | PVC/LSZH/OFNP |
| Fiber Grade: | G.652.D/G.657.A1 | Cable Length: | 1M, 2M, 3M,20M,100MOr Customized |
| Cable Color: | Yellow, Aqua, Purple, Violet Or Customized | Fiber Type: | Singlemode Or Multimode |
| Minimum Bend Radius: | 30 Mm/10 Mm | Mating Times: | ＞1000 |
| Highlight: | OS2 9/125 μm single mode fiber pigtails,OS2 9/125 μm lc fiber pigtail,Simplex single mode fiber pigtails |
||

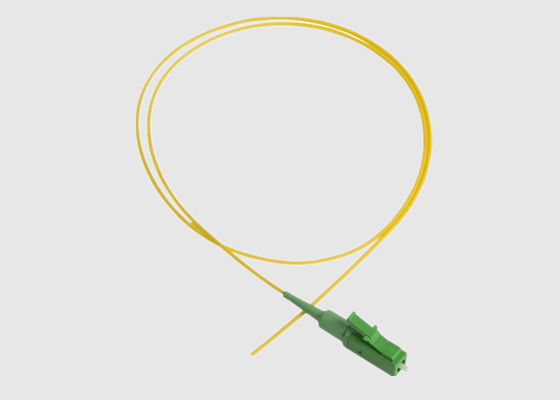

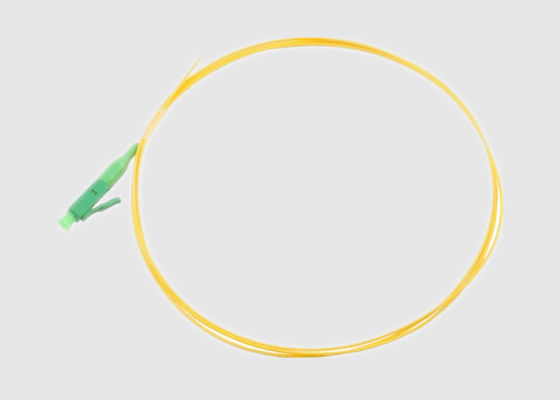

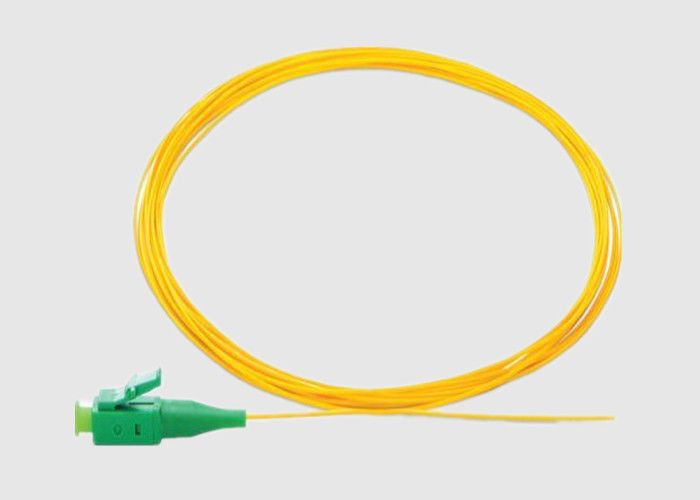

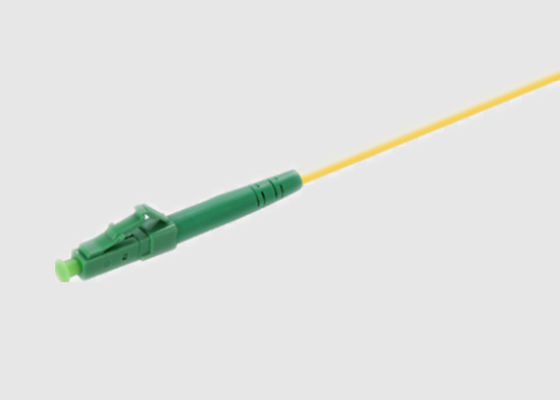

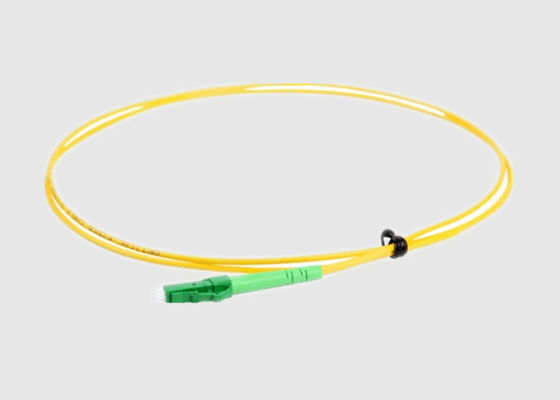

Superior LC 9/125μm Yellow OS2 Simplex Single-Mode Pigtail For Fiber Optic Cable
Basic Information:
Geehe offers simplex LC OS2 single-mode fiber optic pigtails at a very competitive price. Our LC single-mode fiber optic pigtail comprises of an exposed 9/125μm OS2 fiber cable at one end and a pre-installed simplex LC connector at the other end.
The fiber optic pigtails are commonly used to splice the fiber in the cable so that they can be connected to the patch panel or equipment. This pigtail features typical 900μm tight-buffered cables as default.
Available in different lengths, jacket material, polish, cable diameter, and connectors.
Features And Benefits of LC Pigtails
Applications of SC/APC Single Mode Pigtails:
Specification &Technology Parameters:
| Item | SM (Single-Mode) | MM (Multimode) | |||
| Fiber Cable Type | G625D/G655/G6571A/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| IL(dB) | ≤0.3 | ≤0.1 | |||
| Cable Type | Simplex, Duplex, Fan-Out | ||||
| Connector Type | LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc. |
||||
| Cable OD (um) | 0.9/1.6/1.8/2.0/2.4/2.8/3.0 | ||||
| End-face Type | PC | UPC | APC | UPC | UPC |
| Retun Loss(dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Mating Times | >1000 | ||||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
LC/UPC Single Pigtails Specification:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥45 | ≥50 | ≥60 |
| MM | dB | ≥36(Exclusive APC Connector ) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
LC Ordering Information:
| OFC | -X | -XX | -XX | -XX | -XX | -XX |
| S: Simplex D: Duplex | LA:LC/APC LC:LC/UPC LP:LC/PC | LA:LC/APC LC:LC/UPC LP:LC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
More Options Of Fiber Optic Pigtails:
