Product Details:
|
| Model Name:: | Fiber Patch Pigtail | Connector Type: | FC/PC Multimode Fiber Optical Pigtail |
|---|---|---|---|
| Polishing Type: | PC, UPC | Cable Jacket: | PVC/LSZH/OFNP |
| Fiber Grade: | G.652.D/G.657.A1 | Cable Length: | 1M, 2M, 3M,20M,100M Or Customized |
| Cable Diameter (mm): | 0.9mm, 2.0mm,3.0mm | Sleeves Material: | Zirconia Ceramic |
| Minimum Bend Radius: | 30 Mm/10 Mm | Mating Times: | ＞1000 |
| Highlight: | 20M Fiber Optic Pigtail,OS2 Fiber Optic Pigtail,20M single mode fiber pigtails |
||

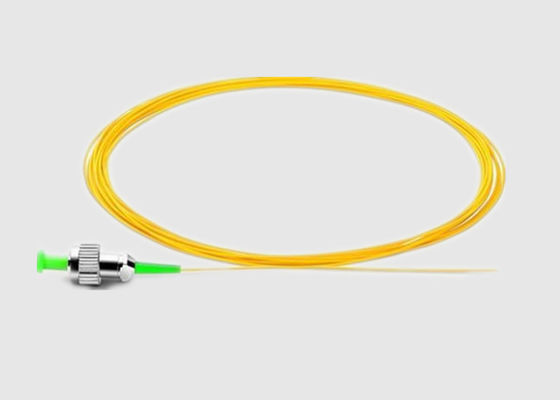

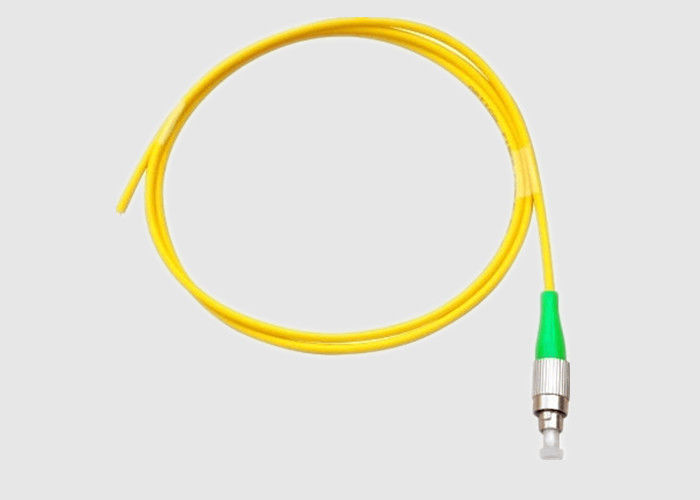

Simplex FC To APC Singlemode OS2 OFNR Rated Yellow Jacket Fiber Patch Pigtail
Basic Information:

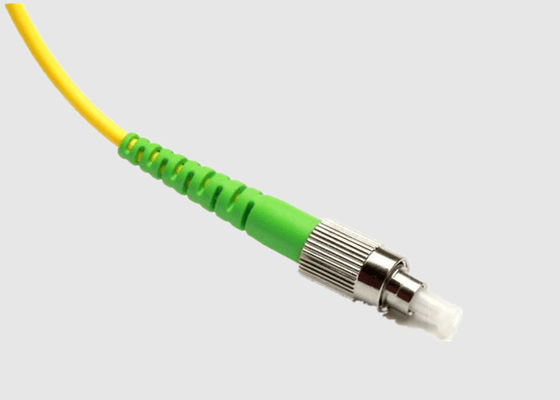

FC Fiber Optic Pigtail was one of the most popular single-mode Pigtails. It uses a 2.5mm ferrule, but some of the early ones use ceramic inside stainless steel ferrules. It screws on firmly, but you must make sure you have the key aligned in the slot properly before tightening. It's been mostly replaced by SC, LC, ST, and MU, they are usually found in fiber optic management equipment like ODF, fiber terminal box, and distribution box.
Features And Benefits of FC Pigtails
Applications of FC/APC Single Mode Pigtails:
Specification &Technology Parameters:
| Item | SM (Single-Mode) | MM (Multimode) | |||
| Fiber Cable Type | G625D/G655/G6571A/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| IL(dB) | ≤0.3 | ≤0.1 | |||
| Cable Type | Simplex, Duplex, Fan-Out | ||||
| Connector Type | LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc. |
||||
| Cable OD (um) | 0.9/1.6/1.8/2.0/2.4/2.8/3.0 | ||||
| End-face Type | PC | UPC | APC | UPC | UPC |
| Retun Loss(dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Mating Times | >1000 | ||||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
FC/APC Single Pigtails Specification:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥45 | ≥50 | ≥60 |
| MM | dB | ≥36(Exclusive APC Connector ) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
FC Ordering Information:
| OFC | -X | -XX | -XX | -XX | -XX | -XX |
| S: Simplex D: Duplex | FA:FC/APC FC:FC/UPC FP:FC/PC | FA:FC/APC FC:FC/UPC FP:FC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
