Product Details:
|
| Model Name:: | FC Fiber Single Mode Pigtail | Connector Type: | FC Connector |
|---|---|---|---|
| Strand Count: | 4, 6, 8, 12, 24, 48 Fibers Optional | Cable Jacket: | PVC/LSZH/OFNP |
| Cable Material: | PVC, OM1, OM2 Or OM3 Optional | Cable Length: | 1M,2M,3M... |
| Cable Color: | Yellow, Aqua, Purple, Violet Or Customized | Fiber Type: | SM/OM1/OM2/OM3/OM4 |
| Cable Mode: | Single Mode Or Multi Mode | End Face Type: | PC/UPC/APC |
| Highlight: | 0.9mm SC UPC Fiber Optic Pigtails,12 Colorful Fiber Optic Pigtails,ROHS Standard Fiber Optic Pigtails |
||

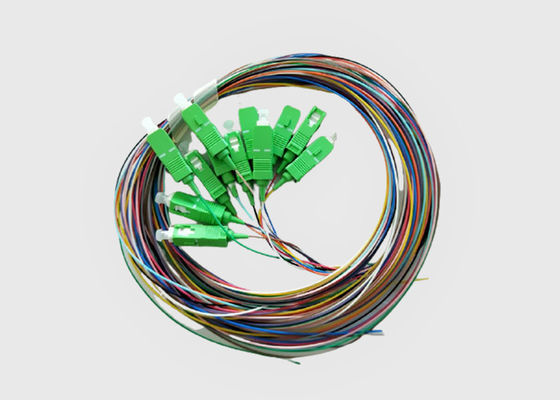

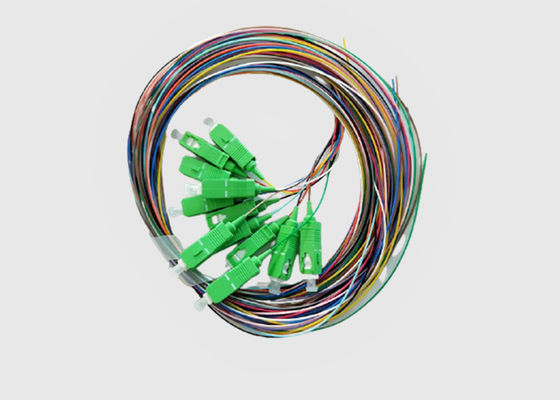

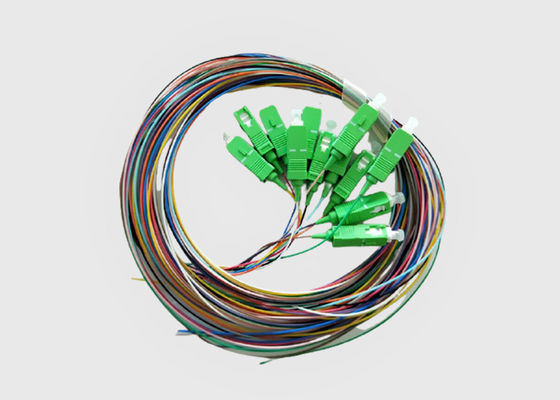

12 Colorful Single Mode 0.9mm SC UPC Corning Fiber Optic Pigtails
Basic Information:
Fibre Pigtails are terminated with fibre optic connectors at only one side of the cable, while leaving the other side to be terminated via fusion or mechanical splicing. High-quality pigtails combined with correct fusion splicing practices offer the best performance possible for fibre optic cable terminations. They are utilized with fibre optic management equipment like fibre terminal boxes or splice trays. The connection types that are available are ST, SC, and LC in Multi-Mode or Single-Mode.
Our 12 Colorful fiber optic pigtail, are manufactured with premium quality sc connectors and with typical 0.9mm outer diameter cables which is most common for fusion splicing. Simplex fiber pigtail and duplex fiber pigtails are available, with multi-cable colors, cable diameter, and jacket types optional.
Features And Benefits of SC Optic Pigtails
Applications of Fiber Optic Pigtails:
Specification &Technology Parameters:
| Item | SM (Single-Mode) | MM (Multimode) | |||
| Fiber Cable Type | G625D/G655/G6571A/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| IL(dB) | ≤0.3 | ≤0.1 | |||
| Cable Type | Simplex, Duplex, Fan-Out | ||||
| Connector Type | LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc. |
||||
| Cable OD (um) | 0.9/1.6/1.8/2.0/2.4/2.8/3.0 | ||||
| End-face Type | PC | UPC | APC | UPC | UPC |
| Retun Loss(dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Mating Times | >1000 | ||||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
12 Colorful Fiber Pigtails Specification:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥45 | ≥50 | ≥60 |
| MM | dB | ≥36(Exclusive APC Connector ) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
SC Connector Ordering Information:
| OFC | -X | -XX | -XX | -XX | -XX | -XX |
| S: Simplex D: Duplex | SA:SC/APC SC:SC/UPC SP:SC/PC | SA:SC/APC SC:SC/UPC SP:SC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
