Product Details:
|
| Model Name:: | Fiber Pigtail | Fiber Type: | Single Mode |
|---|---|---|---|
| Connector: | SC Connector | Cable Jacket: | PVC/LSZH/OFNP |
| Fiber Grade: | G.652.D/G.657.A1 | Cable Length: | 1M, 2M, 3M,20M,100MOr Customized |
| Cable Color: | Yellow, Aqua, Purple, Violet Or Customized | Polish Type: | APC |
| Minimum Bend Radius: | 30 Mm/10 Mm | Durability: | ＞1000 Times |
| Highlight: | 0.9mm Fiber Optic Pigtail,Simplex Fiber Optic Pigtail,0.9mm sc apc pigtail |
||

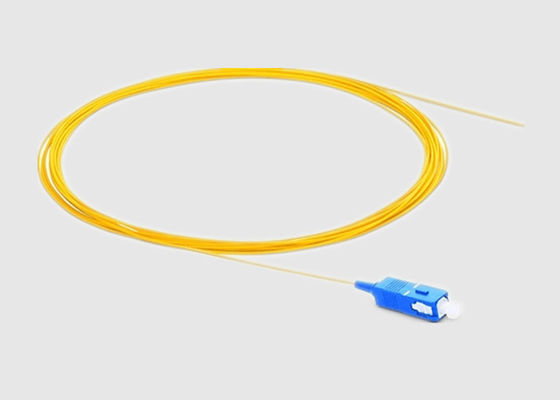

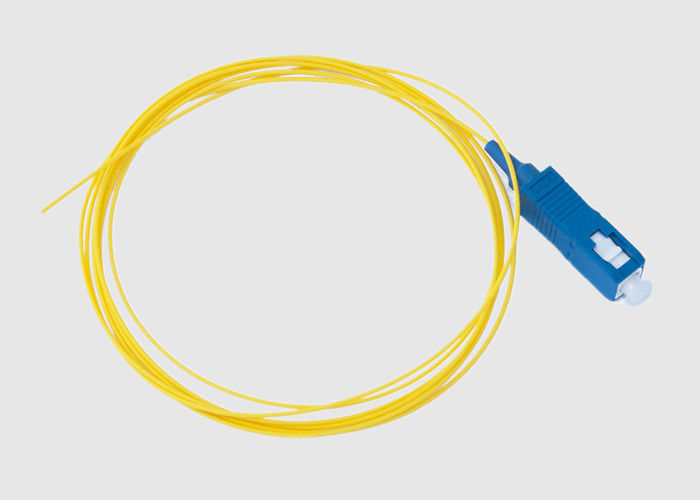

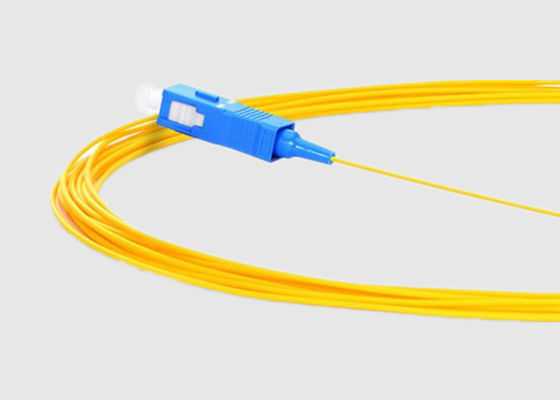

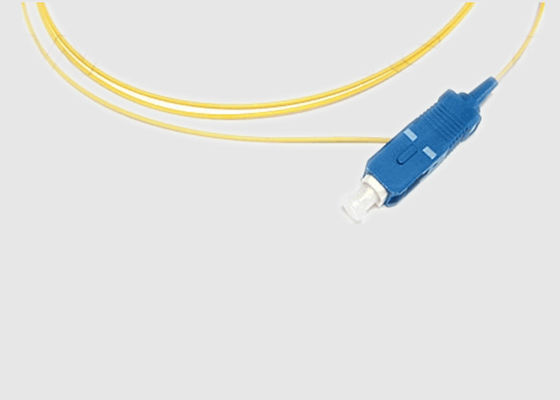

Simplex SC/APC 9/125 Single Mode Fiber Optic Pigtail 0.9 mm PVC Outer Jacket
Basic Information:
SC /APC Fiber optic pigtails provide a fast way to make communication devices in the field. The OS2 fiber optic cable terminated with SC connector on one end, unterminated on the other end. For use in fusion splicing.
They are designed, manufactured, and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Features And Benefits of SC Pigtails
1.Superior qualified standard PC, APC, UPC, SPC polishing
2.Single-mode (9125) or multi-mode (50/125 or 62.5/125) fiber available
3.FC, SC, LC, MU, ST, MT-RJ, etc connector
4.Available in fiber bunch, ribbon fan-out, pigtail available
5.Meets ISO9001, ROHS, and Bell core GR 326-core standards
6.Customized specifications are welcomed
Applications of SC/APC Single Mode Pigtails:
Specification &Technology Parameters:
| Item | SM (Single-Mode) | MM (Multimode) | |||
| Fiber Cable Type | G625D/G655/G6571A/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| IL(dB) | ≤0.3 | ≤0.1 | |||
| Cable Type | Simplex, Duplex, Fan-Out | ||||
| Connector Type | LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc. |
||||
| Cable OD (um) | 0.9/1.6/1.8/2.0/2.4/2.8/3.0 | ||||
| End-face Type | PC | UPC | APC | UPC | UPC |
| Retun Loss(dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Mating Times | >1000 | ||||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
SC/APC Single Pigtails Specification:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥45 | ≥50 | ≥60 |
| MM | dB | ≥36(Exclusive APC Connector ) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
SC Ordering Information:
| OFC | -X | -XX | -XX | -XX | -XX | -XX |
| S: Simplex D: Duplex | SA:SC/APC SC:SC/UPC SP:SC/PC | SA:SC/APC SC:SC/UPC SP:SC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
Typical conectorizaciones are:
LC
LC/APC
SC
FC
ST
