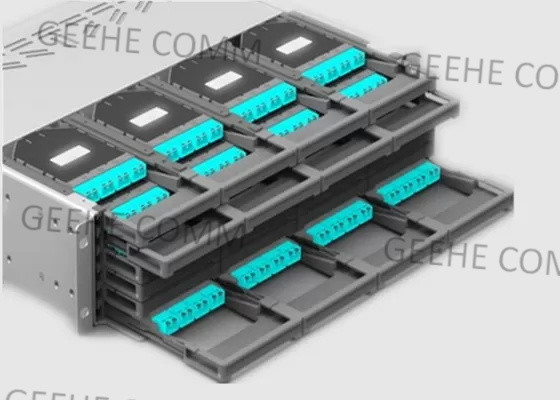

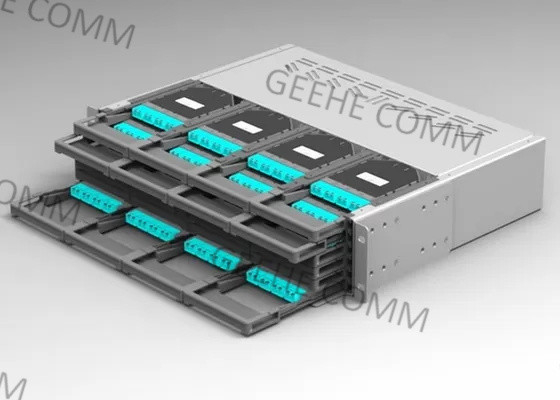

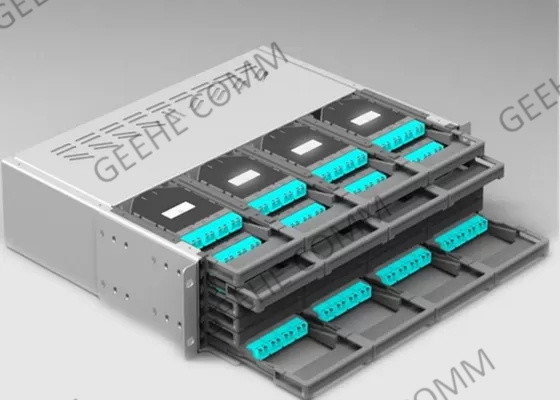

3×16F High Density 24F Intelligent 2U HD Patch Panel

3×16F High-Density 24F Multi-Mode 2U Intelligent Fiber Optic Patch Panel

1. Product Description:

HD-Fiber Optic Patch Panels are applied to the data center. It is designed for the management of the MPO-LC Module and MPO Adapter Panels. It can be installed in a 19-inch rack and cabinet.

The HD-Fiber Optic Panels is more fast speed and transfer than normal wall mount panels, which can afford 40G,100G, and 400G, suitable for 5G transfer, install is easy and save more time.

2. Features & Benefits:

• Sliding-type with Ergonomic design, convenient installation, and maintenance
• Radius protected patch cord routing, easy for cable management, and improved density
• The module box can be installed or removed from the front or rear of the distribution frame
• 3* 16F module or 3*6-port adapter panels in each layer
• Designed to fit fiber optic wall mount and rack mount enclosures
• Patch panel design guide rail and easy pull out
• Available with OM4 or single-mode fiber arrays and adapters
• 1U patch panel  - 1 layer can fill  3 MPO cassettes, total 9 MPO cassettes

3. HD Fiber Patch Panel Applications:

• Data communication applications
• Data Centre infrastructure
• Storage Area Network - Fibre Channel
• Emerging 40 and 100Gbps Protocols compatible

4. Specification and Technology Parameter

5. Frequent Q&A For HD Fiber Patch Panel :

Q1: What are the benefits of using a patch panel?
A: Patch panels will allow testing routing and maintenance of network cables connected to your network. With a patch panel this is quickly done just by making changes to cables on the patch panel itself. Patch panels also allow for easier cable management and identification of cable routing.

Q2: What is a rack unit?
A: A rack unit U or RU is a unit of measure that describes the height of equipment designed to mount in a rack. A rack unit is 1.75 inches. Typically one rack unit will take three vertical screw holes on each side of a standard rack.

Q3: Can I use any fiber patch cable in my network with my enclosure?

A:If your fiber enclosure is loaded you must have cables that are compatible with the included adapters. For unloaded enclosures, you must select adapter panels that correspond to your fiber connector type or use a splice tray for single- and mass-fusing.

Q4: What are the differences between the fiber connectors?

ST- Uses a push and turn to lock system

SC- Has a molded plug casing with push and pull locking system
