Product Details:
|
| Model Name: | Fiber Optic Breakout Panel | Material: | Cold-rolled Steel Sheet |
|---|---|---|---|
| Cassettes: | MPO Cassettes | Max Capacity: | 576 Cores |
| Fiber Type: | Single Mode,Multimode OM2,OM3,OM4,OM5 | Enclosure Body: | SPCC,Black Powder Coated |
| Patch Cord Quantity: | 1x24fo, 2x12Fo ,1x12 Fo | Color: | Aqua And Black |
| Module Qty: | 3 Slots 4 Slots 5 Slots 12 Slots | Dimension: | 483 X 375 X 4HU (mm) |
| Highlight: | MTP To LC HD Patch Panel,OM3 HD Patch Panel,100G HD Patch Panel |
||

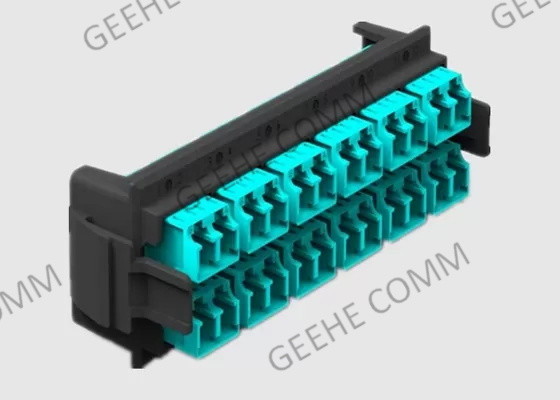

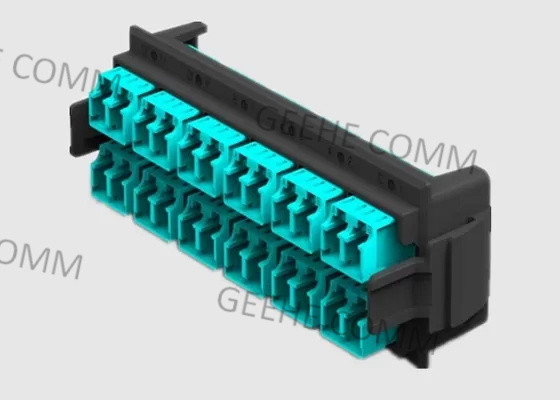

Multimode OM3 Front-Facing 100G MTP To LC Fiber Optic Breakout Panel
1. Product Description:
MTP To LC Fiber Optic Breakout Panel, the breaking out as 48x 40G on the front panel with LC fiber cables. All breakout panels meet the requirements of TIA/EIA, IEC standards, etc., serialized and applied in data center, telecommunication, and storage area network.
The most common uses for MTP to LC Breakout cables include converting higher rates of transmission (40G/100G) to more manageable rates of 10G or lower. Additional uses include the reduction of individual fiber cables, networking equipment, and clutter created by numerous cables.
2. Features & Benefits:
* Slide-out tray makes high-density data center connections easy
* To access cables in the enclosure, simply pull out the tray.
* Three slots accept LC Fiber Cassettes.
* Adjustable-depth mounting enables you to recess the enclosure to protect LC connectors from enclosure door damage
* Either four 12 fiber, or two 24 fiber MTP connectors on one end and Low-Loss LC connectors on the opposite end. Supported fiber specifications include Multimode (OM3/OM4) and Single-Mode (OS2)
* Recessed mounting also enables you to better dress LC zip cords.
* Rail stops prevent the tray from being pulled out too far and damaging fiber
3. HD Fiber Patch Panel Applications:
* Data Centre infrastructure
* Storage Area Network - Fibre Channel
* Emerging 40 and 100Gbps Protocols compatible
* CATV System
* Optic communication systems
4. Specification and Technology Parameter
| Product | HD 1U Fiber patch panel |
| Material | Cold-rolled steel sheet |
| Cassettes | 4 pcs MPO Cassettes |
| Max Capacity | 96 Cores |
| Adapter | LC adapter, MPO adapters |
| Colors | Black |
| patch cord Qty | 1x24fo, 2x12Fo ,1x12 Fo |
| Fiber Mode | G657A1, OM1,Om2,Om3,Om4 |
| Panel Height | 2U |
5. Frequent Q&A For HD Fiber Patch Panel:
Q: What are the benefits of using a patch panel?
A: Patch panels will allow testing routing and maintenance of network cables connected to your network. With a patch panel, this is quickly done just by making changes to cables on the patch panel itself. Patch panels also allow for easier cable management and identification of cable routing.
Q: What is a rack unit?
A: A rack unit U or RU is a unit of measure that describes the height of equipment designed to mount in a rack. A rack unit is 1.75 inches. Typically one rack unit will take three vertical screw holes on each side of a standard rack.
Q: Can I use any fiber patch cable in my network with my enclosure?
A: If your fiber enclosure is loaded you must have cables that are compatible with the included adapters. For unloaded enclosures, you must select adapter panels that correspond to your fiber connector type or use a splice tray for single- and mass-fusing.
Q: What are the differences between the fiber connectors?
ST- Uses a push and turn to lock system
SC- Has a molded plug casing with a push and pull locking system
