Product Details:
|
| Model Name: | Fiber Optic Patch Panel Enclosure | Material: | Cold-rolled Steel Sheet |
|---|---|---|---|
| Cassettes: | MPO Cassettes | Max Capacity: | 144 Cores |
| Fiber Type: | Single Mode,Multimode OM2,OM3,OM4,OM5 | Enclosure Body: | SPCC,Black Powder Coated |
| Patch Cord Quantity: | 1x24fo, 2x12Fo ,1x12 Fo | Color: | Aqua And Black |
| Module Qty: | 3 Slots 4 Slots 5 Slots 12 Slots | Dimension: | 483 X 375x 1HU (mm) |
| Highlight: | 100G MultiMode Fiber Patch Panel,LC MPO MultiMode Fiber Patch Panel,100G 12 port Patch Panel Enclosure |
||
12 Fiber LC MPO 100G Rack Mount Multimode Fiber Optic Patch Panel Enclosure
1. Product Description:
The High-Density 1RU Fiber Patch Panel is used to house fiber terminations and accommodate patching of low and high-density fiber cable breakouts while minimizing the space required in a rack.
The slim 1RU enclosure can be installed into EIA 19” or 23” equipment racks and is designed to occupy the minimum amount of rack space while offering a generous capacity of up to 96 fibers. Patch panels come pre-loaded with your choice of adapters.
2. Features & Benefits:
3. HD Fiber Patch Panel Applications:
4. Specification and Technology Parameter
| Product | HD 1U Fiber patch panel |
| Material | Cold-rolled steel sheet |
| Cassettes | 4 pcs MPO Cassettes |
| Max Capacity | 96 Cores |

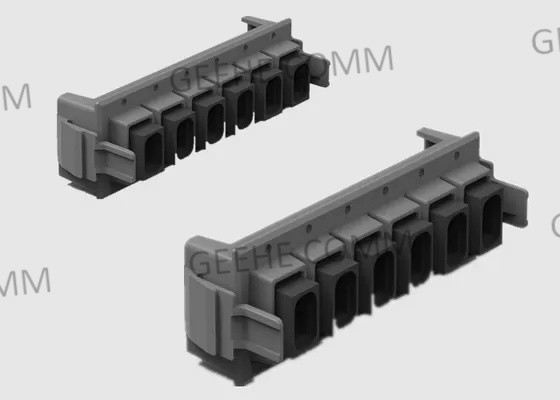

| Adapter | LC adapter, MPO adapters |
| Colors | Black |
| patch cord Qty | 1x24fo, 2x12Fo ,1x12 Fo |
| Fiber Mode | G657A1, OM1,Om2,Om3,Om4 |
| Panel Height | 1U |
5. F& A For HD Fiber Optic Patch Panel
Q: What are the benefits of using a patch panel?
A: Patch panels will allow testing routing and maintenance of network cables connected to your network. With a patch panel, this is quickly done just by making changes to cables on the patch panel itself. Patch panels also allow for easier cable management and identification of cable routing.
Q: What is a rack unit?
A: A rack unit U or RU is a unit of measure that describes the height of equipment designed to mount in a rack. A rack unit is 1.75 inches. Typically one rack unit will take three vertical screw holes on each side of a standard rack.
Q: Can I use any fiber patch cable in my network with my enclosure?
A: If your fiber enclosure is loaded you must have cables that are compatible with the included adapters. For unloaded enclosures, you must select adapter panels that correspond to your fiber connector type or use a splice tray for single- and mass-fusing.
Q: What are the differences between the fiber connectors?
ST- Uses a push and turn to lock system
SC- Has a molded plug casing with push and pull locking system
6. Geehe Factory Service
