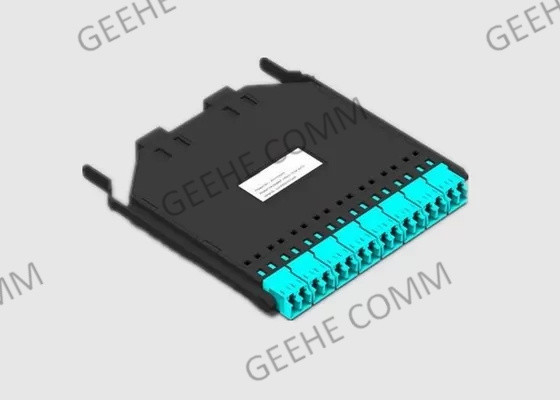

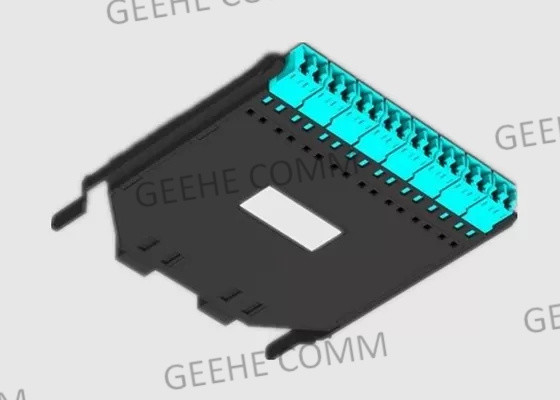

Outdoor 16F MPO-LC Module Multimode 6 Port HD Patch Panel

Outdoor HD 16F MPO-LC Module Multimode 6 Port Fiber Optic Patch Panel

1. Product Description:

The 6 port MPO connector panel is mainly used for jumping the pre-terminal main cable and the fanout cable of the data center.

The adapter panel is used with modules together with 1HU, 2HU, and 4HU HD-Fiber Distribution Frame.

High-Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers, and enterprise applications, 1U up to 96 LC fibers.

2. Features & Benefits:

• The MPO panel can be installed or removed from the front or rear of the HD-Fiber Patch Panels
• Density with MPO:9 pcs adaptor for 1HU; 18pcs adaptor for 2HU; 36pcs adaptor for 4HU

• Connect together with high-density female MTP* cable assemblies as an interconnection network

• Significantly reduce installation time and labor by eliminating field connector terminations

• Easy Access to Rear of Cassettes or Splice Trays

• Scalable as Density Needs Change

• Stacked Panels Can Be Accessed Due To New Removable Door Designs

• Customizable color and LOGO

3. HD 16F MPO-LC Module Application:

• Data communication applications
• Data Centre infrastructure
• Storage Area Network - Fibre Channel
• Emerging 40 and 100Gbps Protocols compatible
• Optic communication systems

4. Specification and Technology Parameter

5. More HD Fiber Optic Panels Can be chosen:

6. Wuhan Geehe Comm Service:

• Optical performance 100% factory tested
• Low Insertion Loss, Back Reflection and PDL
• High-level OEM Service
• Payment Support
• Free Samples for testing
• Factory Audit by the third party or SGS
