RoSH Fast 1.60mm LC Fiber Optic Connectors For Field Termination

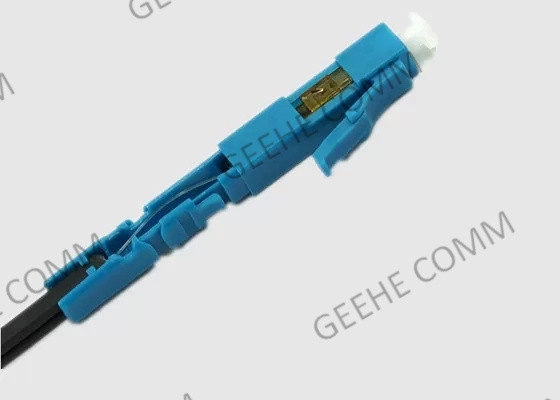

Large Image : RoSH Fast 1.60mm LC Fiber Optic Connectors For Field Termination

Product Details:

Place of Origin:	Hubei,China
Brand Name:	Geehe Comm
Certification:	UL,ISO9001, RoSH, CE
Model Number:	GH-LC-002

Payment & Shipping Terms:

Minimum Order Quantity:	500 pcs
Price:	Negotiation
Packaging Details:	Plastic box per pc with Pressure defense sponge, outer carton
Delivery Time:	Within 3-5 working days
Payment Terms:	T/T, D/P, D/A, Western Union, MoneyGram,LC
Supply Ability:	8,900 pcs per day

Contact Now

RoSH Fast 1.60mm LC Fiber Optic Connectors For Field Termination

Description

Model Name:	Quick LC Fiber Optic Connectors	Connector Type:	SC/FC/LC/ST/MTRJ/MU/MPO Ect
Ferrule End-face:	PC,UPC,APC	Fiber Type:	Singlemode, Multimode
Color:	Blue,Green,Grey,Aqua,Purple Etc	Cable Applicable:	3.1 X 2.0 Mm Drop Cable
Installation Time:	Within 60s ( No Fiber Cut )	Sleeve:	Caremic/Phosphor Bronze
Highlight:	1.60mm LC Fiber Optic Connectors , RoSH LC Fiber Optic Connectors , RoSH fiber optic cable connectors

Fast LC Fiber Optic Connectors For Field Termination of Fiber Optic Cables

Brief Introduction:

LC connectors reduce space requirements by 50%, over 2.50mm ferrule connectors, without sacrificing performance.

LC connectors are available in industry-standard beige (multimode), blue (Singlemode) and green (angle polish) colors, and will accommodate 900μm buffered fiber, 1.60mm, 2.00mm, or 3.00mm jacketed cable. With its six-position tuning feature, the connector may be used to achieve unprecedented insertion loss performance by optimizing the alignment of the fiber cores. Additionally, 45° and 90° boot options are available for 1.60mm and 2.00mm jacketed cable.

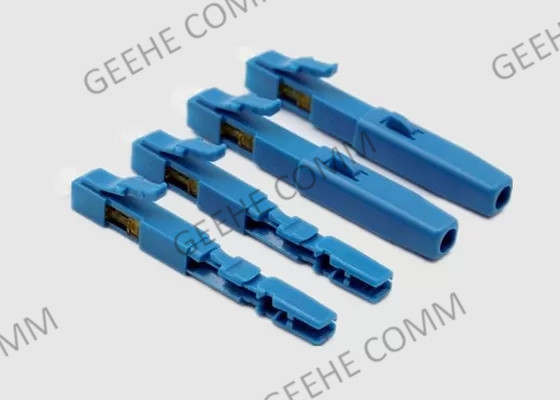

RoSH Fast 1.60mm LC Fiber Optic Connectors For Field Termination 0

Fiber Optic connectors Features and Advantages:

Pre-assembled.
Utilizes precision PC polished zirconia ceramic ferrules.
RJ45 push-pull style housing and latching.
Accommodates 0.9mm, 2mm, and 3mm fiber types.
Available with 0.9mm and 3mm boots.
Complies with EIA/TIA 568A, FOCIS 10, IEC 11801, and Telcordia specifications.
Suitable for high-speed production polishing processes.

RoSH Fast 1.60mm LC Fiber Optic Connectors For Field Termination 1

Application of LC Connector:

Telecommunication networks
Local area networks
Data processing networks
Cable television
LAN, WAN, SAN, and FTTx application

RoSH Fast 1.60mm LC Fiber Optic Connectors For Field Termination 2

Technology Specification& Parameters:

Parameter		Unit	Index
End-Face Type			PC	UPC	APC
IL		dB	SM: ≤0.3； MM ≤0.1
Repeatability		dB	≤0.1
Interchangeability		dB	≤0.2
RL	SM	dB	≥50	≥55	≥60
	MM	dB	≥36(Exclusive APC Connector)
Mating Times			＞1000
Operating Temperature		℃	-40~ +80

Order Information:

OFC	-X	-XX	-XX	-XX	-X	-X
	S: Simplex D: Duplex	LA:LC/APC LC:LC/UPC LP:LC/PC	LA:LC/APC LC:LC/UPC LP:LC/PC	09:0.9mm 20:2.0mm 30:3.0mm	0:G652D 1:G657A 2:50/125 3:62.5/125 4:others	0.5:0.5m 1.0:1.5m 10:10.0m
	Fiber Mode	Connector Type	Connector Type	Cable Diameter	Fiber Type	Fiber Length

More LC Fibre Optic Connector Types:

RoSH Fast 1.60mm LC Fiber Optic Connectors For Field Termination 3

Wuhan Geehe Factory Service:

Provide the highest quality of products
Continuous improvement; accepting new challenges
Innovating new processes, and creating new products for the benefit of our customers
Consultative service and strive to ensure a positive and productive experience
Efficient use of all transportation modes and transit times
Greater visibility and real-time information

RoSH Fast 1.60mm LC Fiber Optic Connectors For Field Termination 4
