Product Details:
|
| Model Name: | Fiber Optic Connector LC/PC | Connector Type: | SC/FC/LC/ST/MTRJ/MU/MPO Ect |
|---|---|---|---|
| Ferrule End-face: | PC,UPC,APC | Fiber Type: | Singlemode, Multimode |
| Color: | Blue,Green,Grey,Aqua,Purple Etc | Cable Applicable: | 3.1 X 2.0 Mm Drop Cable |
| Installation Time: | Within 60s ( No Fiber Cut ) | Sleeve: | Caremic/Phosphor Bronze |
| Housing: | Blue 9/125 Singlemode | Fiber Cable: | 0.9mm,2.0mm,3.0mm |
| Highlight: | 3.0mm LC PC fiber connector,900um LC PC fiber connector,3.0mm multimode fiber connectors |
||

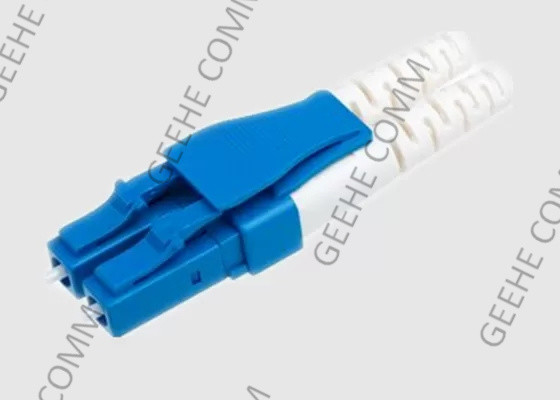

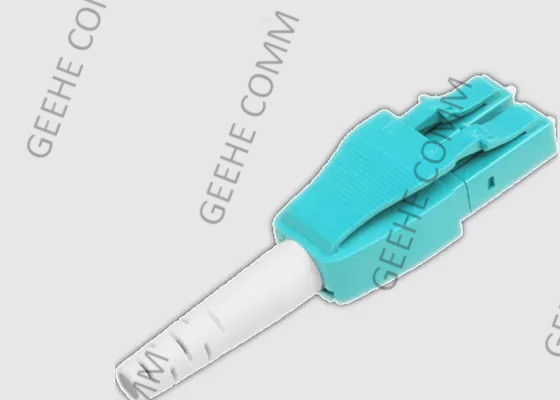

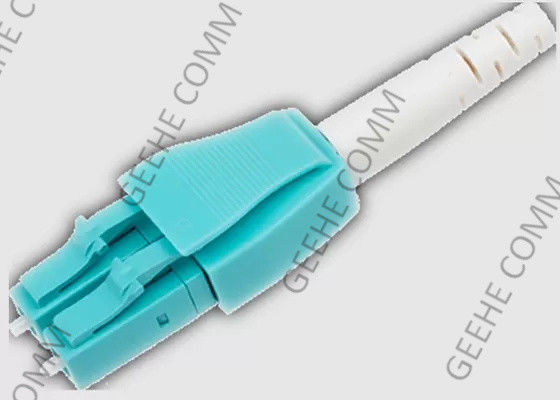

900um Blue Housing 2.0,3.0mm Multi-Mode Fiber Optic Connector LC/PC
Brief Introduction:
Manufacturing quick assembly LC connectors are a fast and efficient method for the termination of single-mode fiber optic cable. These connectors are pre-polished and include a fiber stub with gel for perfect alignment and low loss. Strain relief boots are also included.
More LC optic connectors can be available.
Fiber Optic connectors Features and Advantages:
Free-floating ceramic ferrule
Pre-stubbed, factory-polished ferrule
Precision mechanical alignment ensures low loss
Fiber can be reseated
Application of LC Connector:
Technology Specification& Parameters:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥50 | ≥50 |
| MM | dB | ≥36(Exclusive APC Connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
Order Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
LA:LC/APC LC:LC/UPC LP:LC/PC | LA:LC/APC LC:LC/UPC LP:LC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
