Multimode Simplex 0.9mm SC UPC Fiber Connector

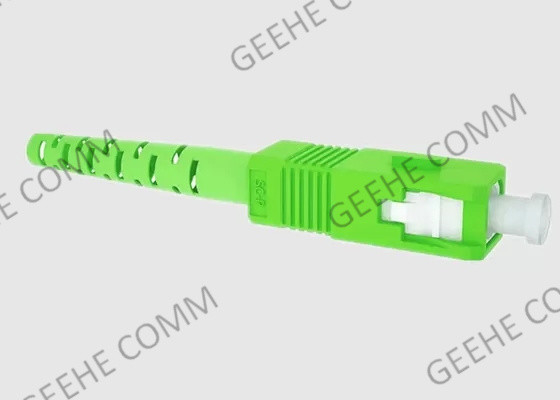

Large Image : Multimode Simplex 0.9mm SC UPC Fiber Connector

Product Details:

Place of Origin:	Hubei,China
Brand Name:	Geehe Comm
Certification:	UL,ISO9001, RoSH,ISO14001:2015
Model Number:	GH-SC-007

Payment & Shipping Terms:

Minimum Order Quantity:	300 pcs
Price:	Negotiation
Packaging Details:	Plastic box per pc with Pressure defense sponge, outer carton
Delivery Time:	Within 3-5 working days
Payment Terms:	T/T, D/P, D/A, Western Union, MoneyGram,LC
Supply Ability:	8,900 pcs per day

Contact Now

Multimode Simplex 0.9mm SC UPC Fiber Connector

Description

Model Name:	Fiber Optic Connector LC/PC	Connector Type:	SC/FC/LC/ST/MTRJ/MU/MPO Ect
Ferrule End-face:	PC,UPC,APC	Fiber Type:	Singlemode, Multimode
Color:	Blue,Green,Grey,Aqua,Purple Etc	Cable Applicable:	3.1 X 2.0 Mm Drop Cable
Installation Time:	Within 60s ( No Fiber Cut )	Sleeve:	Caremic/Phosphor Bronze
Housing:	Blue 9/125 Singlemode	Fiber Cable:	0.9mm,2.0mm,3.0mm
Highlight:	0.9mm SC UPC fiber connector , Simplex SC UPC fiber connector , 0.9mm fiber wire connectors

SC/UPC Multimode Simplex Connector with 0.9mm White Boot - Beige

Brief Introduction:

SC fiber optic connectors are used for equipment cross-connects or interconnect in the backbone, horizontal and work area application.

Possible to directly splice with drop cable & Indoor cable.

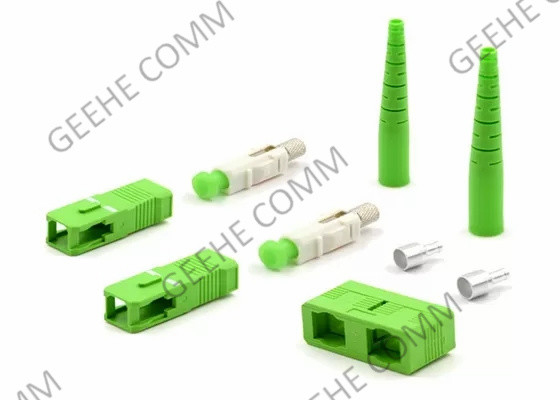

Multimode Simplex 0.9mm SC UPC Fiber Connector 0

Fiber Optic connectors Features and Advantages:

Splice point is inside of Connector, no need for extra splice fixtures.
Enhanced high quality with improved optical features (Insertion Loss & Return Loss)
Enhanced & improved high Tensile Strength (exceeding 60N)
Four parts can easily be assembled after splicing by the one-touch push-pull system. (optionally tighten a screw)
Satisfy the Vertical Burning Test. Materials Compliant with UL94V-0

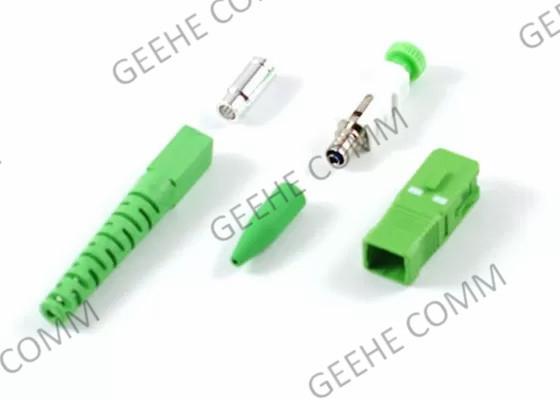

Multimode Simplex 0.9mm SC UPC Fiber Connector 1

Application of SC Connector:

Medium and long range optical transmission circuit, LAN, CATV, FA, OA
PC transmission system, measuring tools, etc.
FTTx Network

Multimode Simplex 0.9mm SC UPC Fiber Connector 2

Technology Specification& Parameters:

Parameter		Unit	Index
End-Face Type			PC	UPC	APC
IL		dB	SM: ≤0.3；MM ≤0.1
Repeatability		dB	≤0.1
Interchangeability		dB	≤0.2
RL	SM	dB	≥50	≥50	≥50
	MM	dB	≥36(Exclusive APC Connector)
Mating Times			＞1000
Operating Temperature		℃	-40~ +80

Order Information:

OFC	-X	-XX	-XX	-XX	-X	-X
	S: Simplex D: Duplex	SA:SC/APC SC:SC/UPC SP:SC/PC	SA:SC/APC SC:SC/UPC SP:SC/PC	09:0.9mm 20:2.0mm 30:3.0mm	0:G652D 1:G657A 2:50/125 3:62.5/125 4:others	0.5:0.5m 1.0:1.5m 10:10.0m
	Fiber Mode	Connector Type	Connector Type	Cable Diameter	Fiber Type	Fiber Length

More Fibre Optic Connector Types:

Multimode Simplex 0.9mm SC UPC Fiber Connector 3
