Product Details:
|
| Model Name: | SC Quick Assembly Connector | Connector Type: | SC/FC/LC/ST/MTRJ/MU/MPO Ect |
|---|---|---|---|
| Ferrule End-face: | PC,UPC,APC | Fiber Type: | Singlemode, Multimode |
| Color: | Blue,Green,Grey,Aqua,Purple Etc | Cable Applicable: | 3.1 X 2.0 Mm Drop Cable |
| Installation Time: | Within 60s ( No Fiber Cut ) | Sleeve: | Caremic/Phosphor Bronze |
| Housing: | Blue 9/125 Singlemode | Fiber Cable: | 0.9mm,2.0mm,3.0mm |
| Highlight: | 2.0mm SC Fiber Optic Connector,2.0mm single mode sc connector,2.0mm fiber optic sc connector |
||

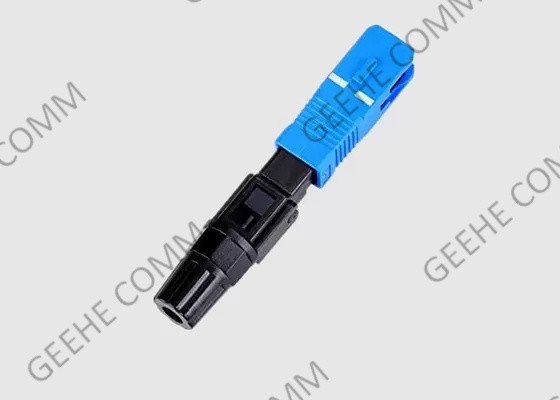

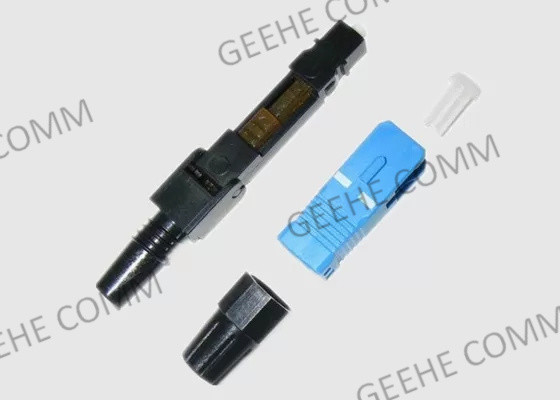

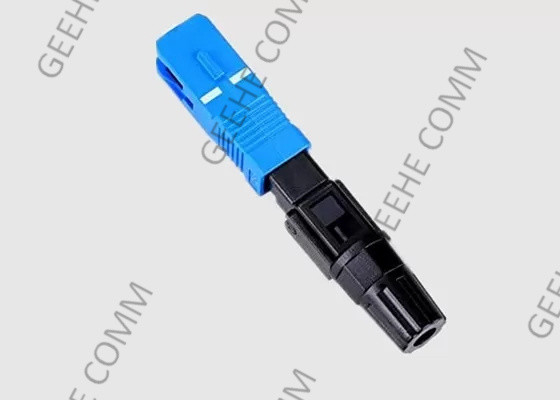

SC Quick Assembly Connector Blue Housing Single-mode For Flat Cables
Brief Introduction:
SC Connectors are frequently used for newer Network applications. The SC is a snap-in connector that is widely used in single-mode systems for its performance. The SC connector is also available in a Duplex configuration.
Geehe offers low cost, simplicity, and durability. SC connectors provide for accurate alignment via ceramic ferrules, Typical matched SC connectors are rated for 1000 mating cycles and have an Insertion Loss of 0.25 dB.
Fiber Optic connectors Features and Advantages:
Application of SC Connector:
Technology Specification& Parameters:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥55 | ≥60 |
| MM | dB | ≥36(Exclusive APC Connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
Order Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SA:SC/APC SC:SC/UPC SP:SC/PC | SA:SC/APC SC:SC/UPC SP:SC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
