Product Details:
|
| Model Name: | Fiber Optic Connector SC/PC | Connector Type: | SC/FC/LC/ST/MTRJ/MU/MPO Ect |
|---|---|---|---|
| Ferrule End-face: | PC,UPC,APC | Fiber Type: | Singlemode, Multimode |
| Color: | Blue,Green,Grey,Aqua,Purple Etc | Cable Applicable: | 3.1 X 2.0 Mm Drop Cable |
| Installation Time: | Within 60s ( No Fiber Cut ) | Sleeve: | Caremic/Phosphor Bronze |
| Housing: | Blue 9/125 Singlemode | Fiber Cable: | 0.9mm,2.0mm,3.0mm |
| Highlight: | 3.0mm SC PC Fiber Optic Connector,3.0mm single mode fiber connectors,3.0mm fiber fast connector |
||

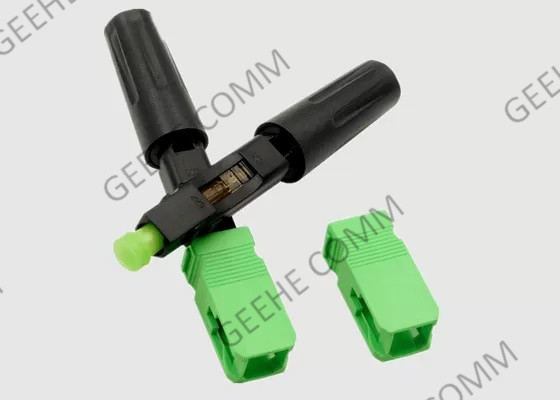

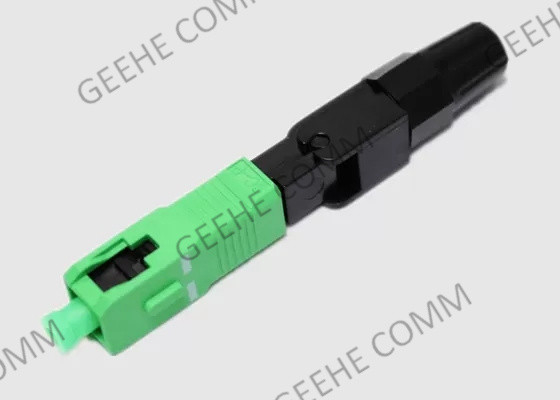

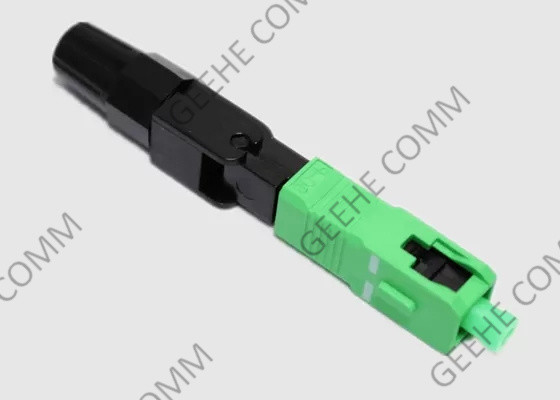

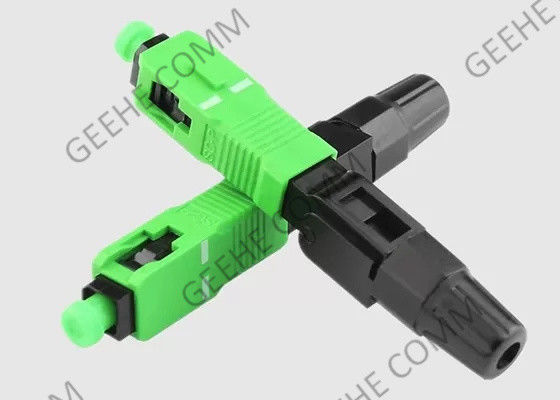

Standard Fast SC Single-mode PC Connector With 3mm Green Boot - Green
Brief Introduction :
Geehe offers low cost, simplicity, and durability. SC connectors provide for accurate alignment via ceramic ferrules, Typical matched SC connectors are rated for 1000 mating cycles and have an Insertion Loss of 0.25 dB.
SC/PC stands for a subscriber connector and is a standard-duplex fiber-optic connector with a square molded plastic body and push-pull locking features. SC connectors are typically used in data communication, CATV, and telephony environments.
Fiber Optic connectors Features and Advantages:
Application of SC Connector:
Technology Specification& Parameters:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥55 | ≥60 |
| MM | dB | ≥36(Exclusive APC Connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
Order Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SA:SC/APC SC:SC/UPC SP:SC/PC | SA:SC/APC SC:SC/UPC SP:SC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
More Fibre Optic Connector Types:
