Product Details:
|
| Model Name: | Fiber Optic Connector Lc | Connector Type: | SC/FC/LC/ST/MTRJ/MU/MPO Ect |
|---|---|---|---|
| Ferrule End-face: | PC,UPC,APC | Fiber Type: | Singlemode, Multimode |
| Color: | Blue,Green,Grey,Aqua,Purple Etc | Cable Applicable: | 3.1 X 2.0 Mm Drop Cable |
| Installation Time: | Within 60s ( No Fiber Cut ) | Sleeve: | Caremic/Phosphor Bronze |
| Highlight: | 9/125 Fiber Optic FC Connector,UPC Polish Fiber Optic FC Connector,UPC Polish optical fiber connector |
||

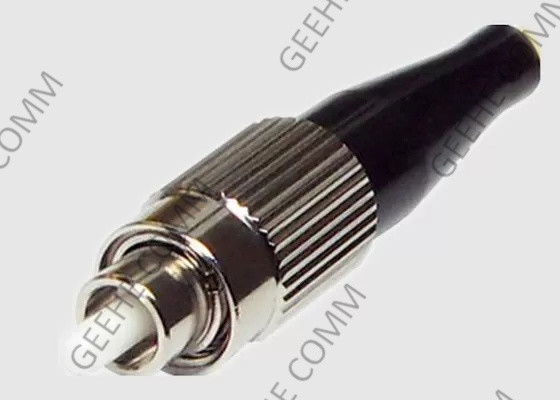

Customized UPC Polish Single Mode 9/125 Fiber FC Optical Connector
Brief Introduction:
A Fiber FC Connector that is fusion spliced to the end of the cable. The factory pre-polished ferrule eliminates the need for polishing, adhesives, index matching gels, and crimping in the field.
FC Connector may be designated "FC/PC" (for Physical Contact), while FC/SPC and FC/UPC may denote "super" and "ultra" polish qualities, respectively. Higher grades of polish give less insertion loss and lower back-reflection.
Fiber Optic connectors Features and Advantages:
Application of LC Connector :
Technology Specification& Parameters:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥50 | ≥50 |
| MM | dB | ≥36(Exclusive APC Connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
Order Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
FA:FC/APC FC:FC/UPC FP:FC/PC | FA:FC/APC FC:FC/UPC FP:FC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
