Product Details:
|
| Model Name: | Single Mode LC Fast Connector | Connector Type: | SC/FC/LC/ST/MTRJ/MU/MPO Ect |
|---|---|---|---|
| Ferrule End-face: | PC,UPC,APC | Fiber Type: | Singlemode, Multimode |
| Color: | Blue,Green,Grey,Aqua,Purple Etc | Cable Applicable: | 3.1 X 2.0 Mm Drop Cable |
| Installation Time: | Within 60s ( No Fiber Cut ) | Sleeve: | Caremic/Phosphor Bronze |
| Highlight: | 250μM Fiber Optic LC Connector,250μM ftth fast connector,250μM single mode fiber connectors |
||

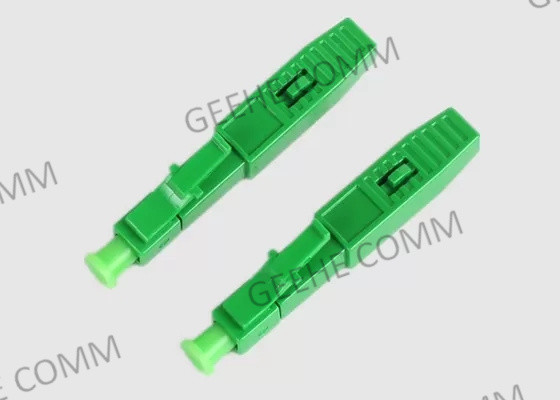

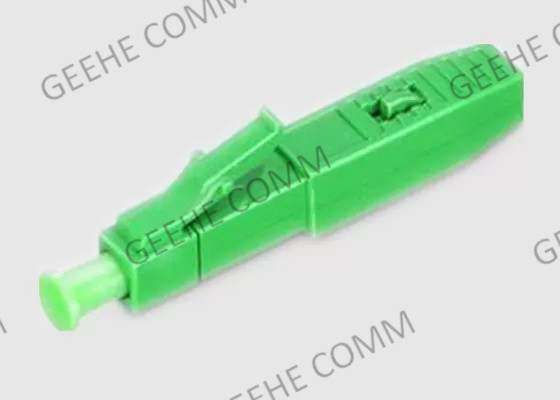

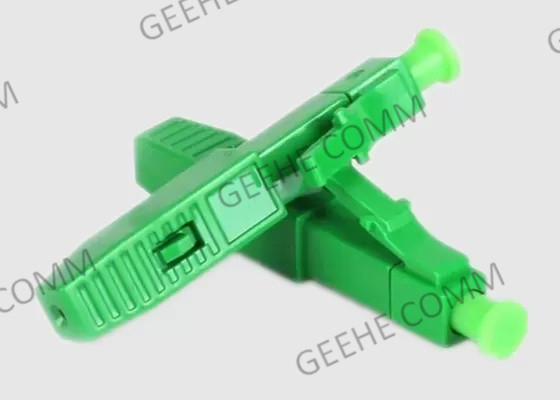

Easy Installation Pre-polished Ferrule Field Single Mode LC Fast Connector
Brief Introduction :
FAST Connectors are compatible with 250 μm and 900 μm optical fibers, as well as 900 μm, 2 mm, and 3 mm cordage. All primary fiber types are supported, and each connector is color-coded per industry standard requirements to aide in identification during and after installation.
Our Field Assembly Optical Connector series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single-mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with SPC or APC ferrules.
Fiber Optic connectors Features and Advantages :
Application of LC Connector:
Fiber-optic communication systems and telecommunication networks
Fiber optic data transmission, CATV
Optical access network
Fibre to the Subscriber (FTTx) applications
Optical cable interconnection
Maintenance or emergency restoration of fiber networks
Repair/replacement requirements
Fiber optic equipment
Technology Specification& Parameters:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3; MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥55 | ≥60 |
| MM | dB | ≥36(Exclusive APC Connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
Order Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
LA:LC/APC LC:LC/UPC LP:LC/PC | LA:LC/APC LC:LC/UPC LP:LC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
