Product Details:
|
| Model Name: | HD Fiber Optic Enclosure 1U | Material: | Cold-rolled Steel Sheet |
|---|---|---|---|
| Cassettes: | MPO Cassettes | Max Capacity: | 576 Cores |
| Adapter: | LC Fiber Patch Cords To Mpo Connector | Colors: | Black |
| Patch Cord Quantity: | 1x24fo, 2x12Fo ,1x12 Fo | Panal Height: | 2U |
| Module Qty: | 3 Slots 4 Slots 5 Slots 12 Slots | Application: | 10G 40G 100G Data Center |
| Highlight: | 1U fiber optic enclosure,LC/UPC To 24F MPO fiber optic enclosure |
||

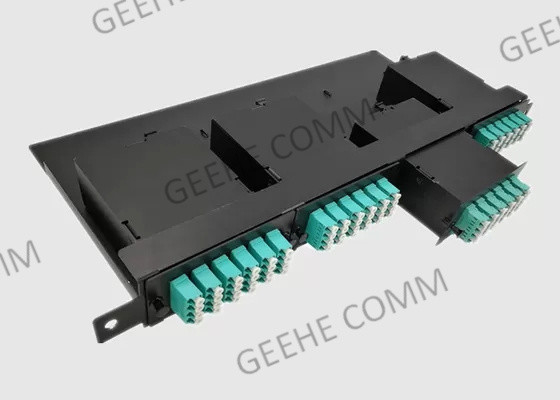

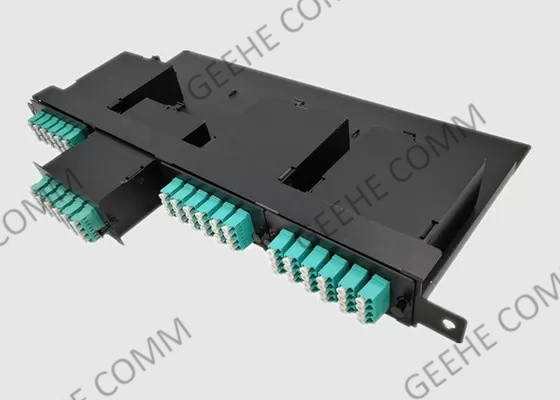

Black Box Duplex LC/UPC To 24F MPO Male HD Fiber Optic Enclosure 1U
1. Product Description:

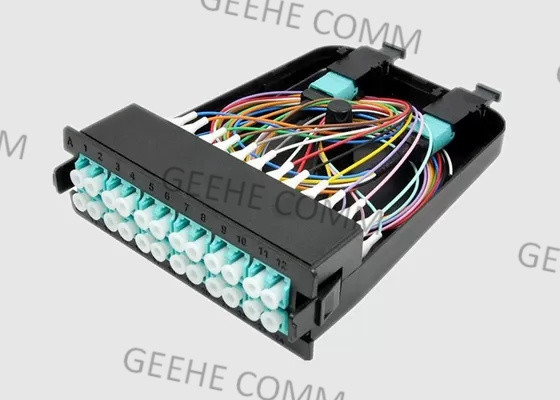

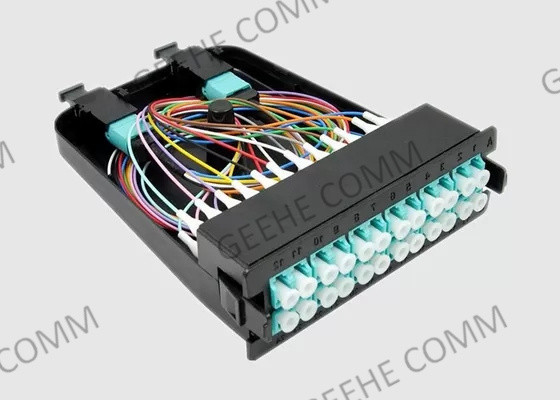

MPO cassette module is mainly used to divide the 12 fibers' MPO connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patch cord, the output of the module can be directly connected with the equipment, frame, or client’s end.
This transition module is characterized by single core or double core port in module front, 12 core SC simplex and LC duplex connectors are optional, one or two adapters are installed on the back, the nodule is transition patch cord, directly connected the module front panel with the back of the adapter.
2. HD Fiber Optic Panel Features & Benefits:
01| The front panel is equipped with LC, MTRJ or SC adapter, rear panel assembles the MPO adapter
02| Adopts high-quality engineering plastics and aluminum alloy materials, with electrostatic plastic-sprayed on the surface, making it beautiful in outlook and convenient in use
03| MPO faceplate can be upgraded easily
04| There is a mark in the front of each port, and can be easily identified
05| Quick and easy installed, flexible in configuration and easy to management
06| Labelling space available, for visual identification
07| Saves space and footprint through increased port density
3. HD Fiber Patch Panel Applications:
01 | Data communication applications
02 | Data Center infrastructure
03 | Storage Area Network – Fiber Channel
04 | Emerging 40 and 100Gbps protocols compatible
05 | Ethernet, LAN, MAN and WAN applications
4. Specification and Technology Parameter
| Product | HD 2U Fiber patch panel |
| Material | Cold-rolled steel sheet |
| Cassettes | 4 pcs MPO Cassettes |
| Max Capacity | 96 Cores |
| Adapter | LC adapter, MPO adapters |
| Colors | Black |
| patch cord Qty | 1x24fo, 2x12Fo ,1x12 Fo |
| Fiber Mode | G657A1, OM1,Om2,Om3,Om4 |
| Panel Height | 2U |
5. Frequent Q&A For HD Fiber Patch Panel :
Q1: What are the benefits of using a patch panel?
A: Patch panels will allow testing routing and maintenance of network cables connected to your network. With a patch panel, this is quickly done just by making changes to cables on the patch panel itself. Patch panels also allow for easier cable management and identification of cable routing.
Q2: What is a rack unit?
A: A rack unit U or RU is a unit of measure that describes the height of equipment designed to mount in a rack. A rack unit is 1.75 inches. Typically one rack unit will take three vertical screw holes on each side of a standard rack.
Q3: Can I use any fiber patch cable in my network with my enclosure?
A: If your fiber enclosure is loaded you must have cables that are compatible with the included adapters. For unloaded enclosures, you must select adapter panels that correspond to your fiber connector type or use a splice tray for single- and mass-fusing.
Q4: What are the differences between the fiber connectors?
ST- Uses a push and turn to lock system
SC- Has a molded plug casing with push and pull locking system
