Product Details:
|
| Model Name: | ST/UPC Simplex Single Mode | Connector Type: | SC/FC/LC/ST/MTRJ/MU/MPO Ect |
|---|---|---|---|
| Ferrule End-face: | PC,UPC,APC | Fiber Type: | Singlemode, Multimode |
| Color: | Blue,Green,Grey,Aqua,Purple Etc | Cable Applicable: | 3.1 X 2.0 Mm Drop Cable |
| Installation Time: | Within 60s ( No Fiber Cut ) | Sleeve: | Caremic/Phosphor Bronze |
| Housing: | Blue, Black 9/125 Singlemode | Fiber Cable: | 0.9mm,2.0mm,3.0mm |
| Highlight: | Fiber Optic Cable Connectors ST/UPC,Simplex Single Mode Fiber Optic Connector,Nickel Plated Metal Optical Connector |
||

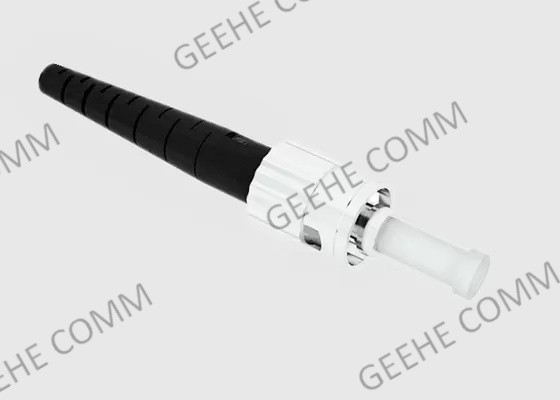

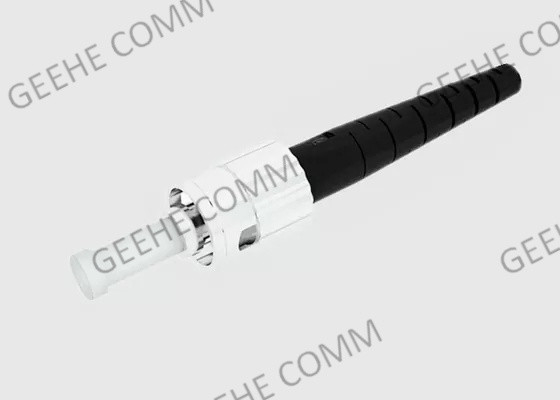

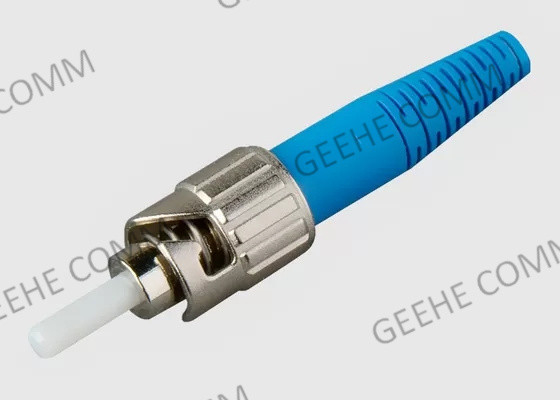

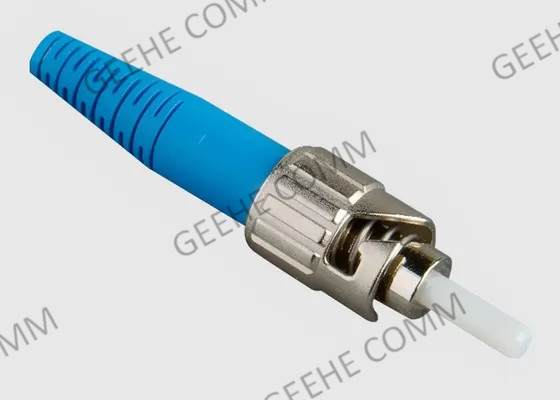

Nickel Plated Metal Fiber Optics Connector ST/UPC Simplex Single Mode
Brief Introduction:
An Optic fiber Connector terminates the end of an optic fiber cable and enables quicker connection and disconnection. The connectors mechanically couple and align the cores of fibers so that light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers.
The ST connector family (straight tip) represents the standard connector type for installations and is frequently used in local networks. A typical feature of the ST connector family is the bayonet connection, also known as the BFOC connector (bayonet FO connector). The standard ST connector for telecommunications, LAN, industry, medical and sensor technology. The ST FO connector family meets the standards: IEC 61754-2 and CECC 86 115-801.
Ferrule: this is a thin structure (often cylindrical) that actually holds the glass fiber. It has a hollowed-out center that forms a tight grip on the fiber. Ferrules are usually made from ceramic, metal, or high-quality plastic, and typically will hold one strand of fiber.
Connector Body: this is a plastic or metal structure that holds the ferrule and attaches to the jacket and strengthens members of the fiber cable itself.
Coupling Mechanism: this is a part of the connector body that holds the connector in place when it gets attached to another device (a switch, NIC, bulkhead coupler, etc.). It may be a latch clip, a bayonet-style nut, or a similar device.
Fiber Optic connectors Features and Advantages:
Application of SC Connector:
Technology Specification& Parameters:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥55 | ≥65 |
| MM | dB | ≥36(Exclusive APC Connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
Order Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
FA:FC/APC FC:FC/UPC FP:FC/PC | FA:FC/APC FC:FC/UPC FP:FC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
