Single Mode SC UPC Simplex Fiber Optic Connector For Fiber Jumpers

Large Image : Single Mode SC UPC Simplex Fiber Optic Connector For Fiber Jumpers

Product Details:

Place of Origin:	Wuhan, China
Brand Name:	Geehe
Certification:	UL,ISO9001, RoSH,ISO14001:2015, UL
Model Number:	GH-SC-0018

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiation
Packaging Details:	Plastic box per pc with Pressure defense sponge, outer carton or customized
Delivery Time:	Within 7-9 working days if confirm today
Payment Terms:	T/T, D/P, D/A, Western Union, MoneyGram,LC, Cash
Supply Ability:	26,666 pcs per day

Contact Now

Single Mode SC UPC Simplex Fiber Optic Connector For Fiber Jumpers

Description

Model Name:	Fiber Optic Connection Near Me	Connector Type:	SC/FC/LC/ST/MTRJ/MU/MPO Ect
Ferrule End-face:	PC,UPC,APC	Fiber Type:	Singlemode, Multimode
Color:	Blue,Green,Grey,Aqua,Purple Etc	Cable Applicable:	3.1 X 2.0 Mm Drop Cable
Installation Time:	Within 60s ( No Fiber Cut )	Sleeve:	Caremic/Phosphor Bronze
Housing:	Blue 9/125 Singlemode	Fiber Cable:	0.9mm,2.0mm,3.0mm
Highlight:	SC UPC Simplex Fiber Optic Connector , Single Mode SC UPC Fiber Cable Connector , Single Mode Fiber Connectors SC UPC

Single Mode SC UPC Simplex Fiber Optic Connection Near Me For Fiber Jumpers

Brief Introduction:

SC UPC Connector is a snap-in type connector that latches with a push-pull motion. SC stands for "subscriber channel". These are the most common type of connectors deployed. They can be used for individual "drop" distribution channels or high-density patch panels.

This boot is provided with customization options that allow you to choose your desired boot size along with boot color.

SC Series is designed for single-mode, multi-mode, APC applications and offers the most reliable optical fiber connections for Telecom, Datacom, and FTTX networks.

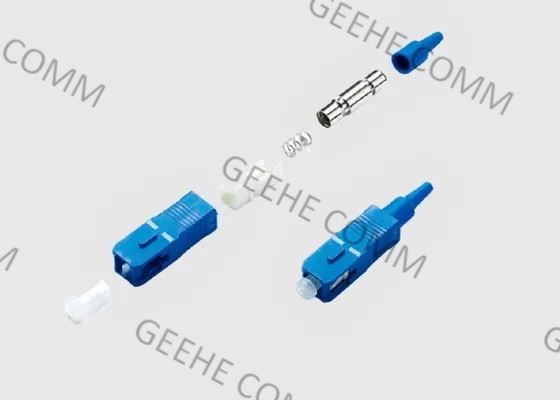

Single Mode SC UPC Simplex Fiber Optic Connector For Fiber Jumpers 0

Fiber Optic connectors Features and Advantages:

Low insertion loss
Corrosion-resistant body
Precision mechanical dimension
Meets Telecordia-GR-326-CORE specifications
Ultra-low back reflection
Connect multimode fiber in a durable bronze sleeve
One Piece with pre-domed ceramic ferrule is designed for easy assembly
For 3.0mm, 2.0mm jacket, or 900um buffer
ROHS compliant

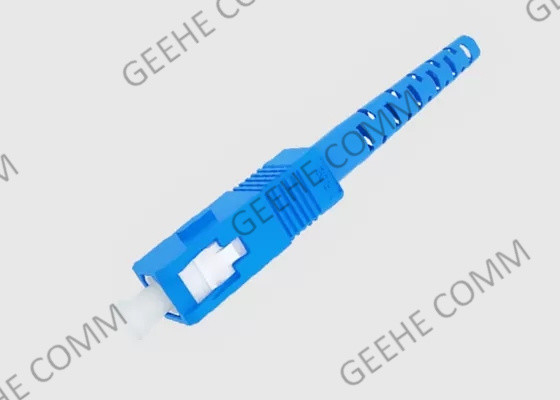

Single Mode SC UPC Simplex Fiber Optic Connector For Fiber Jumpers 1

Application of SC Connector:

Medium and long-range optical transmission circuit, LAN, CATV, FA, OA
PC transmission system, measuring tools, etc
Telecom, Datacom, and FTTX networks

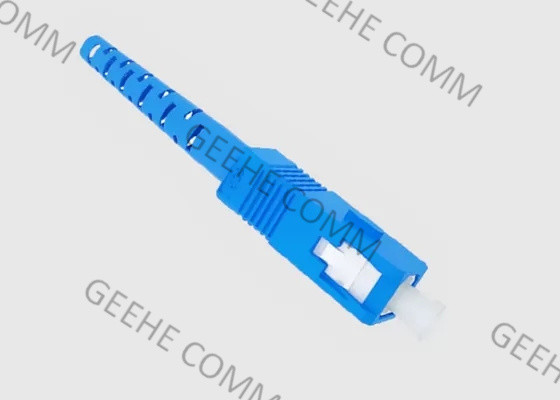

Single Mode SC UPC Simplex Fiber Optic Connector For Fiber Jumpers 2

Technology Specification& Parameters:

Parameter		Unit	Index
End-Face Type			PC	UPC	APC
IL		dB	SM: ≤0.3；MM ≤0.1
Repeatability		dB	≤0.1
Interchangeability		dB	≤0.2
RL	SM	dB	≥50	≥50	≥50
	MM	dB	≥36(Exclusive APC Connector)
Mating Times			＞1000
Operating Temperature		℃	-40~ +80

Order Information:

OFC	-X	-XX	-XX	-XX	-X	-X
	S: Simplex D: Duplex	SA:SC/APC SC:SC/UPC SP:SC/PC	SA:SC/APC SC:SC/UPC SP:SC/PC	09:0.9mm 20:2.0mm 30:3.0mm	0:G652D 1:G657A 2:50/125 3:62.5/125 4:others	0.5:0.5m 1.0:1.5m 10:10.0m
	Fiber Mode	Connector Type	Connector Type	Cable Diameter	Fiber Type	Fiber Length
