Product Details:
|
| Model Name:: | Fiber Optic Pigtails | No. Of Fiber: | 12 Cores |
|---|---|---|---|
| Diameter: | 0.9/2.0/3.0mm | Connector: | SC/APC |
| Outsheath: | LSZH | End-face Type: | PC,UPC,APC |
| Cable Color: | Yellow, Aqua, Purple, Violet Or Customized | Fiber Type: | SM/OM1/OM2/OM3/OM4 |
| Minimum Bend Radius: | 30 Mm/10 Mm | Mating Times: | ＞1000 |
| Highlight: | 0.9mm SC UPC Pigtail,0.9mm single mode fiber pigtails,LSZH single mode fiber pigtails |
||

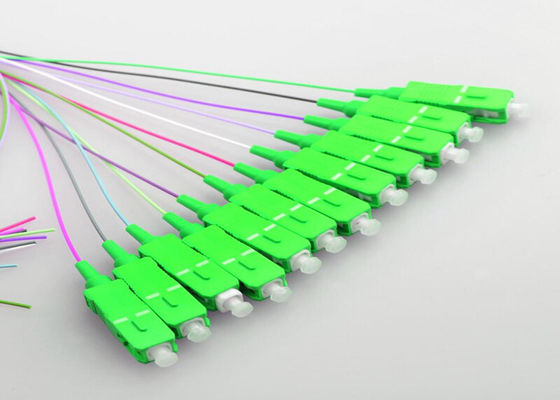

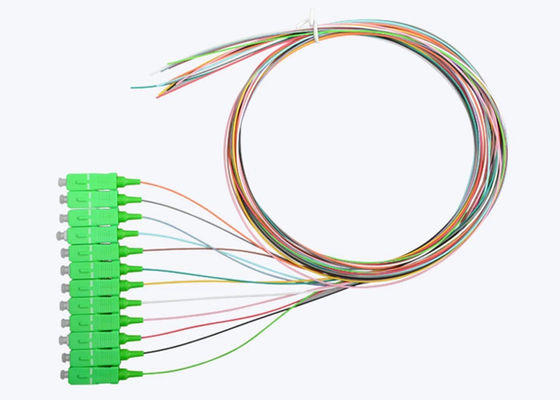

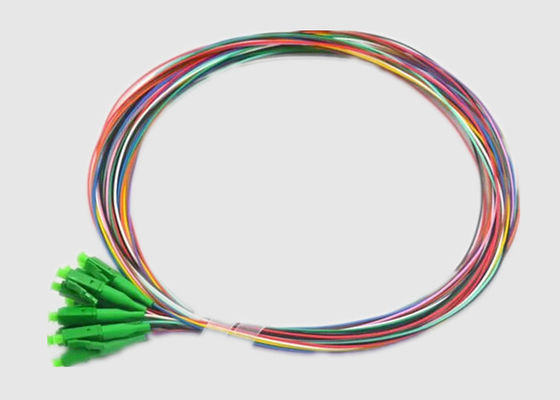

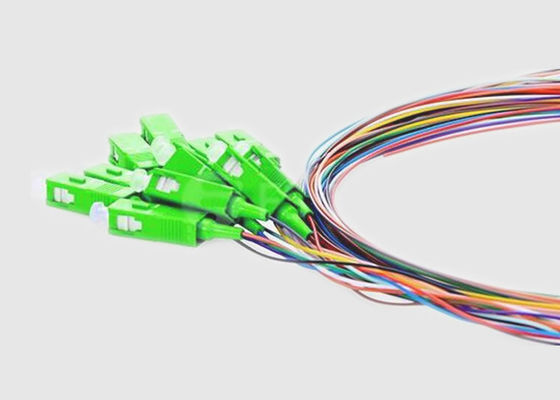

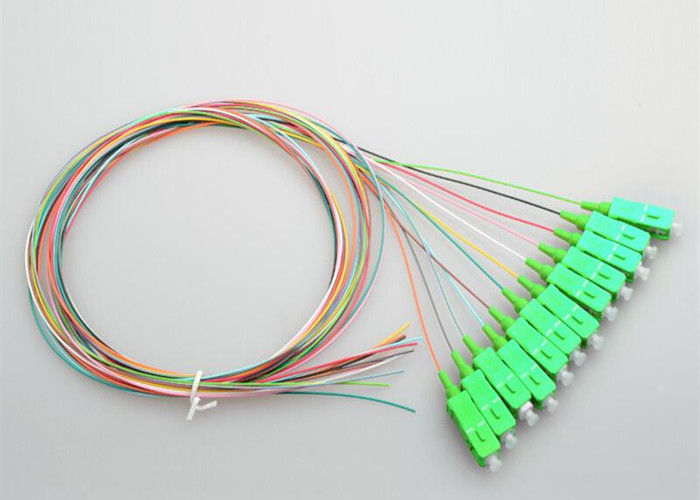

Sc/UPC Single Mode 12 Pack Multi-Color Ceramic Ferrules Fiber Optic Pigtails
What is Fiber Pigtail?
A fiber pigtail usually has an optical connector pre-installed at one end where occur the fusion spliced into a single fiber of a multi-fiber trunk. Pigtails can have female or male connectors. Fiber optic pigtails are usually unjacketed in order to be spliced and then protected in a fiber splice tray.
Cable assemblies terminated on only one end are commonly referred to as pigtails, which are manufactured with either multimode or single-mode fiber and are terminated with a variety of connectors including SC, SC/APC, LC, LC/APC, FC, FC/APC, MTP?/MPO, and MTP PRO. Other connector types are available upon request.
Performance is guaranteed as all assemblies are tested for insertion loss and reflectance.
Features And Benefits of Fiber Pigtails:
Applications of 12 Cores Pigtails:
Specification &Technology Parameters:
| Item | SM (Single-Mode) | MM (Multimode) | |||
| Fiber Cable Type | G625D/G655/G6571A/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| IL(dB) | ≤0.3 | ≤0.1 | |||
| Cable Type | Simplex, Duplex, Fan-Out | ||||
| Connector Type | LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc. |
||||
| Cable OD (um) | 0.9/1.6/1.8/2.0/2.4/2.8/3.0 | ||||
| End-face Type | PC | UPC | APC | UPC | UPC |
| Retun Loss(dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Mating Times | >1000 | ||||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
Sc Connector Specification:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3;MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥45 | ≥50 | ≥60 |
| MM | dB | ≥36(Exclusive APC Connector ) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
SC Ordering Information:
| OFC | -X | -XX | -XX | -XX | -XX | -XX |
| S: Simplex D: Duplex | SA:SC/APC SC:SC/UPC SP:SC/PC | SA:SC/APC SC:SC/UPC SP:SC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
