Product Details:
|
| Model Name:: | SC Fiber Pigtail Connector | Fiber Type: | Single Mode |
|---|---|---|---|
| Connector: | SC,FC,LC,ST Etc | Cable Jacket: | PVC/LSZH/OFNP |
| Sleeves Material: | Zirconia Ceramic | Cable Length: | 1M, 2M, 3M,20M,100MOr Customized |
| Cable Color: | Yellow, Aqua, Purple, Violet Or Customized | Polish Type: | APC,PC,UPC |
| Cable Diameter (mm): | 0.9mm, 2.0mm, 3.0mm | Durability: | ＞1000 Times |
| Highlight: | 2mm SC Fiber Pigtail,OM3 SC Fiber Pigtail,Multimode SC Fiber Pigtail |
||

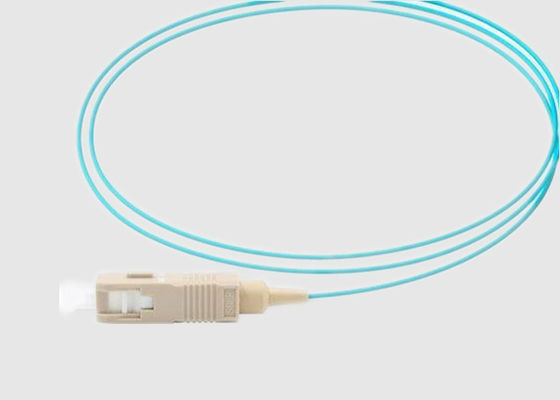

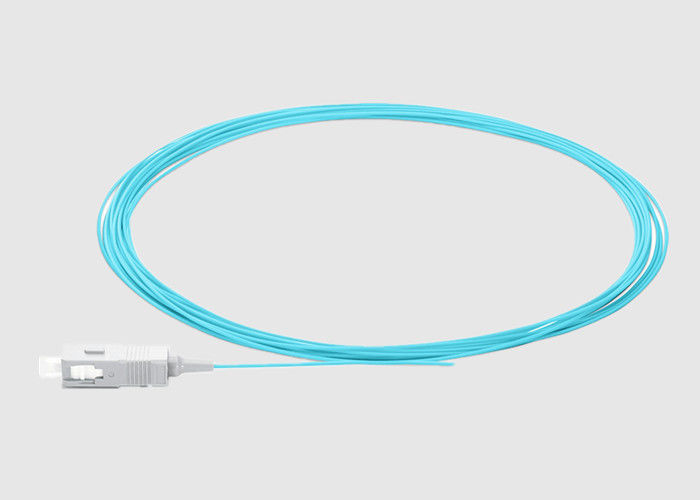

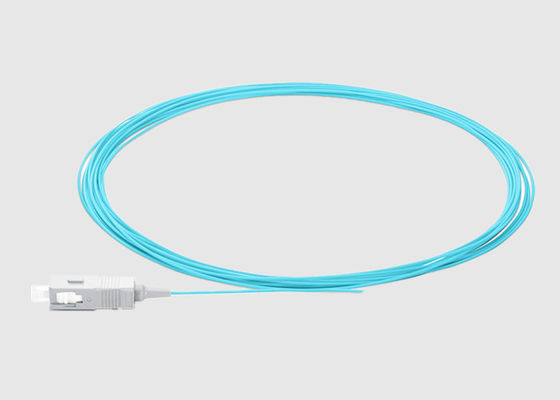

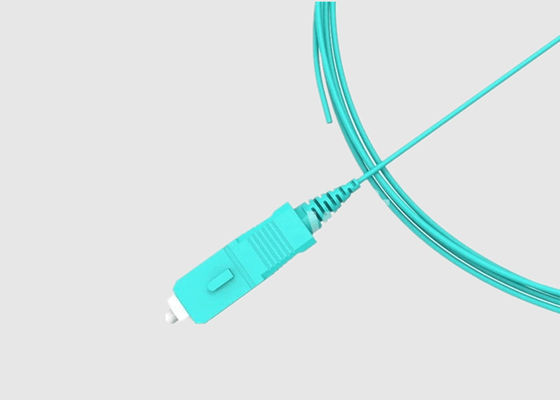

OM3 Pigtail 2mm Multimode PVC(OFNR) Cable Type SC Fiber Pigtail Connector
Basic Information:
SC- APC optic patch cables are commonly used patch cords due to good durability and low cost. The push-pull design of the connectors is ideal for limited space requirements.
Geehe's pigtails are characterized by low insertion loss. They use the highest quality ferrules. Each patchcord passes individual quality control (inspection of surfaces and measurement of transmission parameters - insertion and return loss).
OM3 standard provides higher data throughput over greater distances than its predecessors. The transmission speed of 10 Gbps is possible at distances up to 550 m, and higher speeds, such as 40 Gbps and 100 Gbps can be reached at 100 meters (OM1 and OM2 standards do not allow for such fast rates).
Features And Benefits of SC Pigtails
Applications of SC/APC Single Mode Pigtails:
Specification &Technology Parameters:
| Item | SM (Single-Mode) | MM (Multimode) | |||
| Fiber Cable Type | G625D/G655/G6571A/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| IL(dB) | ≤0.3 | ≤0.1 | |||
| Cable Type | Simplex, Duplex, Fan-Out | ||||
| Connector Type | LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc. |
||||
| Cable OD (um) | 0.9/1.6/1.8/2.0/2.4/2.8/3.0 | ||||
| End-face Type | PC | UPC | APC | UPC | UPC |
| Retun Loss(dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Mating Times | >1000 | ||||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
SC/APC Single Pigtails Specification:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥45 | ≥50 | ≥60 |
| MM | dB | ≥36(Exclusive APC Connector ) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
SC Ordering Information:
| OFC | -X | -XX | -XX | -XX | -XX | -XX |
| S: Simplex D: Duplex | SA:SC/APC SC:SC/UPC SP:SC/PC | SA:SC/APC SC:SC/UPC SP:SC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
Benefits to our customers include:
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
