Product Details:
|
| Model Name:: | ST Pigtail Connector Fiber Optic Cable | Connector Type: | ST/APC Singlemode Fiber Optical Pigtail |
|---|---|---|---|
| Cable Diameter (mm): | 0.9mm, 2.0mm,3.0mm | Cable Jacket: | PVC/LSZH/OFNP |
| Polishing Type: | PC, UPC | Cable Length: | 1M, 2M, 3M,20M,100MOr Customized |
| Cable Color: | Yellow, Aqua, Purple, Violet Or Customized | Fiber Type: | Singlemode Or Multimode |
| Sleeves Material: | Zirconia Ceramic | Mating Times: | ＞1000 |
| Highlight: | 3.0MM Fiber Optic Pigtail,9/125um ST Pigtail,3.0MM optical fiber pigtail |
||

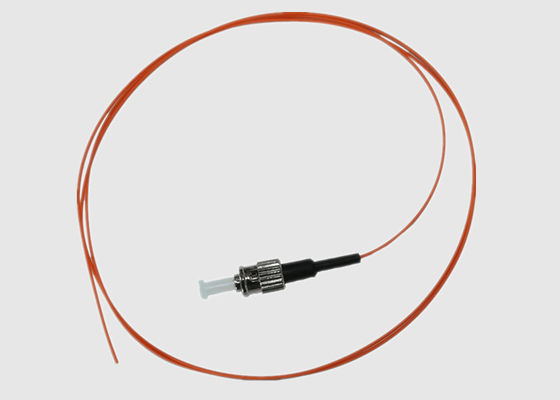

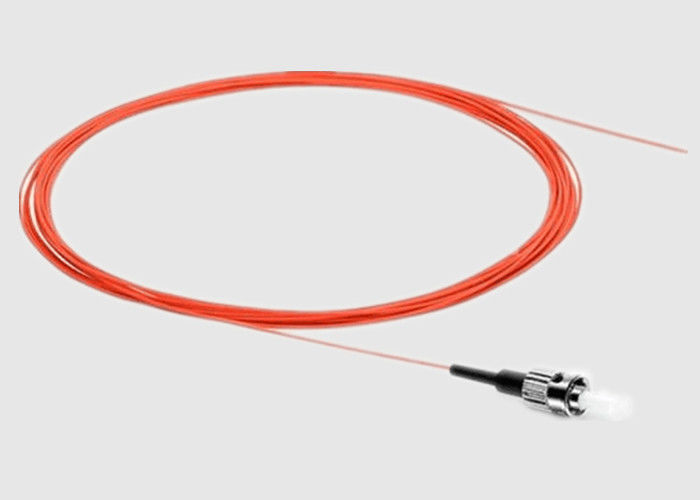

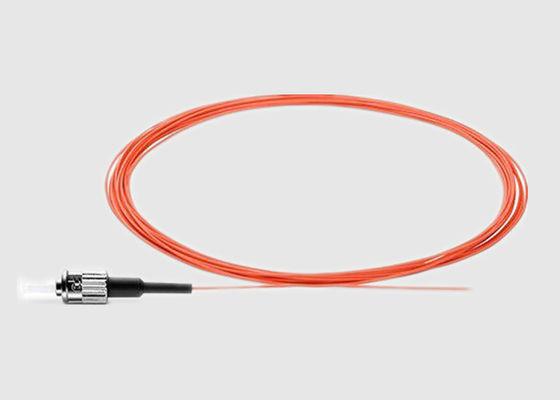

Single Mode APC Simplex 3.0MM 9/125um ST Pigtail Connector Fiber Optic Cable
Basic Information:
ST/APC Fiber Pigtail with ST type connectors, we also offer different connecters.
Single Mode ST Pigtail has three kinds of wavelengths, 1310nm, 1490nm, and 1550nm, the transmission distance is 10km and 40km respectively.
Single Mode ST Pigtail uses metal sleeves to protect in outside, and a dust cap to protect the fiber ferrule, ST/APC Fiber Optic Pigtail has been a favorite for a variety of applications, cost-effectiveness, ease in termination, and low-loss connectivity.
APC Fiber Pigtail insertion loss is no more than 0.5dB, and the return loss is generally less than 45dB.
Features And Benefits of LC Pigtails
Free Multimode ST Pigtails sample in stock
Repetitive good high return loss
Acceptable quality 100 percent test
Acceptable customization
Safety of shipment
Applications of ST /APC Single Mode Pigtails:
Optical access network
Data processing networks
Premise installations
Telecommunication networks
Communication networks
CATV, LAN, WAN, Test &Measurement
Specification &Technology Parameters:
| Item | SM (Single-Mode) | MM (Multimode) | |||
| Fiber Cable Type | G625D/G655/G6571A/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| IL(dB) | ≤0.3 | ≤0.1 | |||
| Cable Type | Simplex, Duplex, Fan-Out | ||||
| Connector Type | LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc. | ||||
| Cable OD (um) | 0.9/1.6/1.8/2.0/2.4/2.8/3.0 | ||||
| End-face Type | PC | UPC | APC | UPC | UPC |
| Retun Loss(dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Mating Times | >1000 | ||||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
ST/APC Single Pigtails Specification:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3; MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥45 | ≥50 | ≥60 |
| MM | dB | ≥36(Exclusive APC Connector ) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
More Connectors Of Fiber Optic Pigtails:
