Product Details:
|
| Model Name:: | Fan Out Fiber Optic Pigtail | Connector Type: | ST Connector |
|---|---|---|---|
| Strand Count: | 6 Cores | Cable Jacket: | PVC/LSZH/OFNP |
| Sleeves Material: | Zirconia Ceramic | Cable Length: | 1M, 2M, 3M,20M,100M Or Customized |
| Cable Color: | Yellow, Aqua, Purple, Violet Or Customized | Fiber Type: | SM/OM1/OM2/OM3/OM4 |
| Cable Diameter (mm): | 0.9mm, 2.0mm,3.0mm | End Face Type: | PC/UPC/APC |
| Highlight: | 3M Fiber Optic Pigtail,9/125um Fiber Optic Pigtail,9/125um single mode fiber pigtails |
||

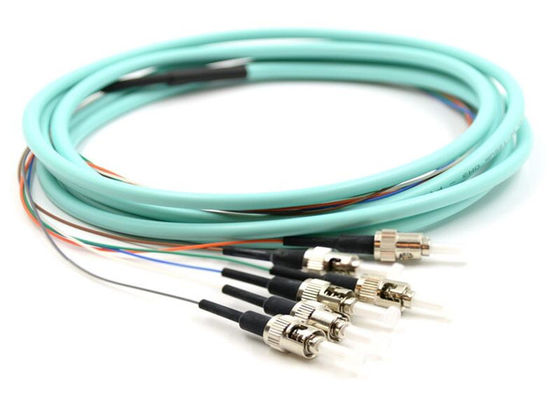

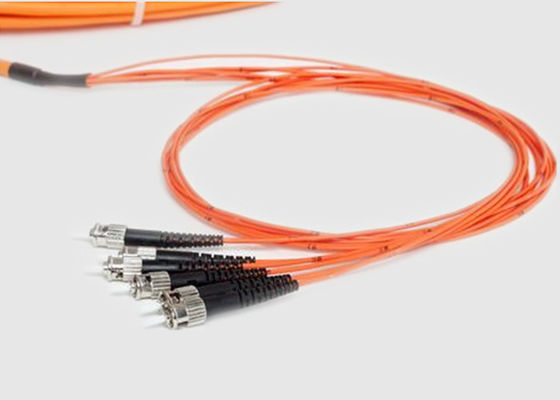

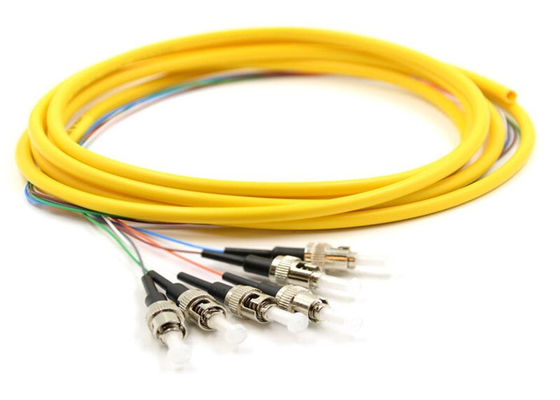

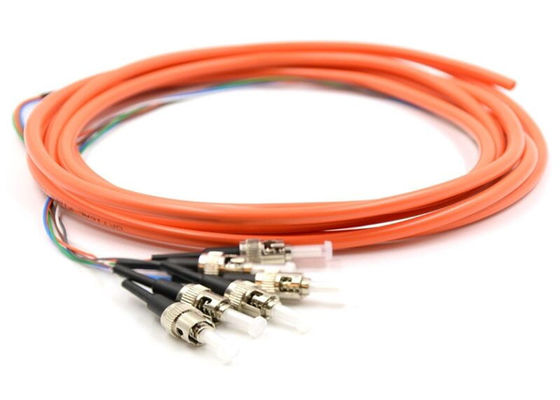

ST/UPC 3M Single Mode 9/125um 6 Cores Bundle Fan Out Fiber Optic Pigtail
Basic Information:
Normally Singlemode Fiber Optic Pigtail is simplex, but also has multi-core fiber, they are all available for Active device termination installations.
ST-PC single-mode fiber optic pigtail has different colors and meter numbers, 0.9/2.0/3.0mm wire diameter, Both “Singlemode simplex or duplex” and “multimode simplex or duplex” versions ST fiber optic Pigtail come with a zirconia ceramic ferrule with pre-polished PC profile and convex spherical end.
Fiber optic pigtails could have 1, 2, 4, 6, 8, 12, 24, and 48 strand fiber counts.
Features And Benefits:
Applications of LC/APC Single Mode Pigtails:
Specification &Technology Parameters:
| Item | SM (Single-Mode) | MM (Multimode) | |||
| Fiber Cable Type | G625D/G655/G6571A/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| IL(dB) | ≤0.3 | ≤0.1 | |||
| Cable Type | Simplex, Duplex, Fan-Out | ||||
| Connector Type | LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc. |
||||
| Cable OD (um) | 0.9/1.6/1.8/2.0/2.4/2.8/3.0 | ||||
| End-face Type | PC | UPC | APC | UPC | UPC |
| Retun Loss(dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Mating Times | >1000 | ||||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
Single Mode Fiber Pigtails Specification:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3; MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥45 | ≥50 | ≥60 |
| MM | dB | ≥36(Exclusive APC Connector ) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
