| Model Name:: | Single Mode Fiber Pigtail Connector | Connector Type: | FC/APC Single Mode Fiber Optical Pigtail |
|---|---|---|---|
| Polishing Type: | PC, UPC | Cable Jacket: | PVC/LSZH/OFNP |
| Fiber Grade: | G.652.D/G.657.A1 | Repeatability: | SM <0.2dB |
| Exchangeability: | SM <0.2dB | Sleeves Material: | Zirconia Ceramic |
| Minimum Bend Radius: | 30 Mm/10 Mm | Mating Times: | ＞1000 |
| Highlight: | OM2 FC APC pigtail,3.0mm FC APC pigtail,OM2 single mode pigtail |
||

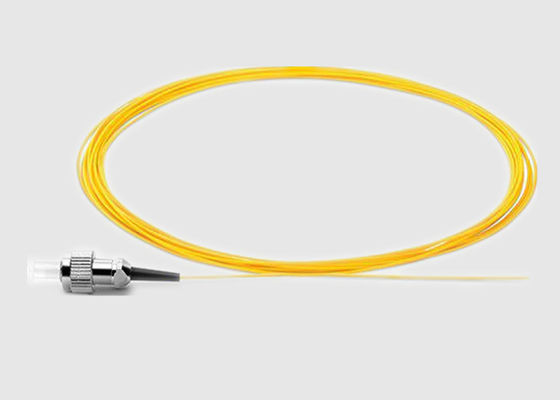

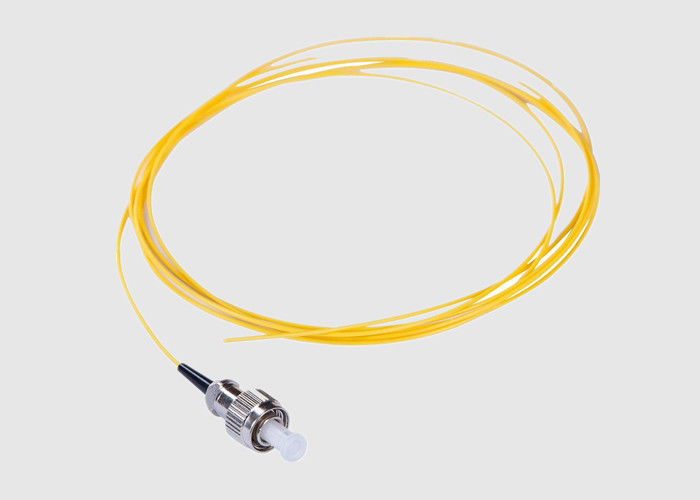

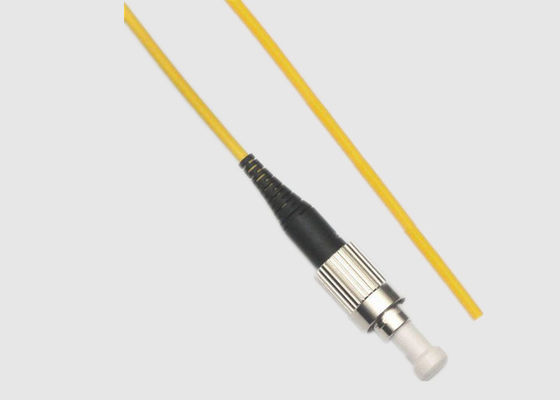

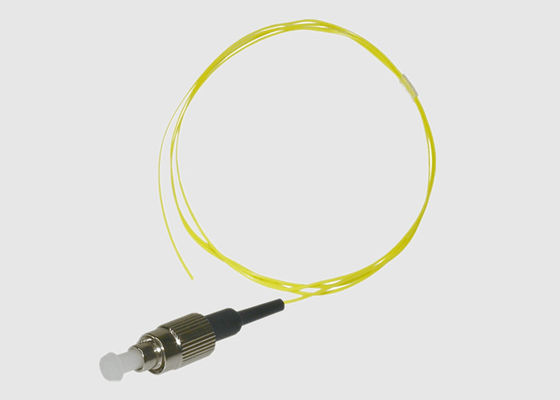

FC APC 3.0mm LSZH OM2 Yellow Jacket Single Mode Fiber Pigtail Connector
Basic Information:
FC Apc pigtails are available with different buffer and jacket types and colors, including bare fibers (250 microns), tight buffers (900 microns), or jacketed mini cables in simplex or duplex (zip-cord) constructions.
Optical Fiber Pigtails can be used for all applications that request data transmissions greater than 2.5 Gbps. All standard cable configurations meet your interconnection needs. All pigtails are manufactured & tested to meet the highest performance, which meets and exceeds Telcordia GR 326 requirements.
Features And Benefits of FC Pigtails
1) Ceramic Ferrule;
2) High return loss;
3) Low insertion loss;
4) Good repeatability and exchangeability;
5) Excellent Polished and 100% tested;
6) Complying with Telcordia, GR-326-Core, IEC and RoHS Standard
Applications of FC/APC Single Mode Pigtails:
1) Local Area Network (LAN)
2) Data communication network
3) Telecommunication optical transmission network
4) Optical access network(OAN)
5) Active device termination
6) Fiber optics data transmission(FODT)
7) Test Equipment
8) CATV
Specification &Technology Parameters:
| Item | SM (Single-Mode) | MM (Multimode) | |||
| Fiber Cable Type | G625D/G655/G6571A/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| IL(dB) | ≤0.3 | ≤0.1 | |||
| Cable Type | Simplex, Duplex, Fan-Out | ||||
| Connector Type | LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc. |
||||
| Cable OD (um) | 0.9/1.6/1.8/2.0/2.4/2.8/3.0 | ||||
| End-face Type | PC | UPC | APC | UPC | UPC |
| Retun Loss(dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Mating Times | >1000 | ||||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
FC/APC Single Pigtails Specification:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3; MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥45 | ≥50 | ≥60 |
| MM | dB | ≥36(Exclusive APC Connector ) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
FC Ordering Information:
| OFC | -X | -XX | -XX | -XX | -XX | -XX |
| S: Simplex D: Duplex | FA:FC/APC FC:FC/UPC FP:FC/PC | FA:FC/APC FC:FC/UPC FP:FC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
