Product Details:
|
| Model Name:: | Multimode Fiber Optic Pigtail | Fiber Type: | Single Mode |
|---|---|---|---|
| Connector A: | SC Connector | Cable Jacket: | PVC/LSZH/OFNP |
| Wavelength: | 1310 Nm/1550 Nm | Cable Length: | 1M, 2M, 3M,20M,100MOr Customized |
| Cable Color: | Yellow, Aqua, Purple, Violet Or Customized | Cable Diameter: | 0.9mm, 1.8mm,2.0mm, 3.0mm |
| Minimum Bend Radius: | 30 Mm/10 Mm | Durability: | ＞1000 Times |
| Highlight: | 50/125nm Fiber Optic Pigtail,50/125nm SC PC Pigtail,50/125nm multimode fiber pigtail |
||

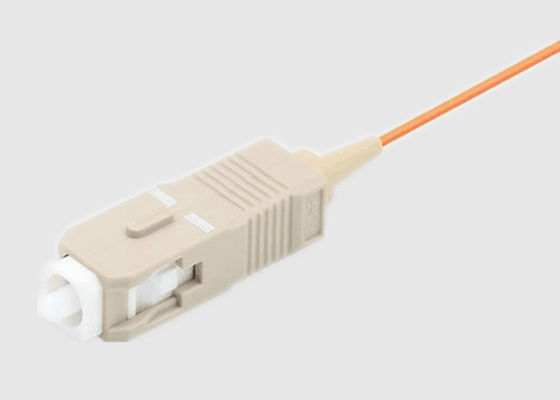

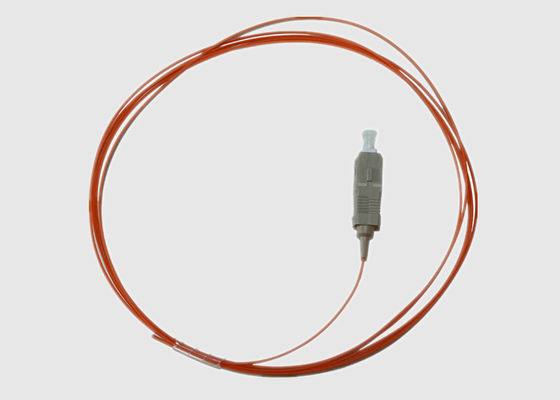

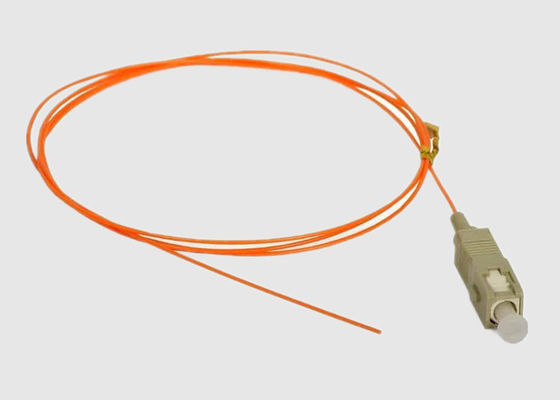

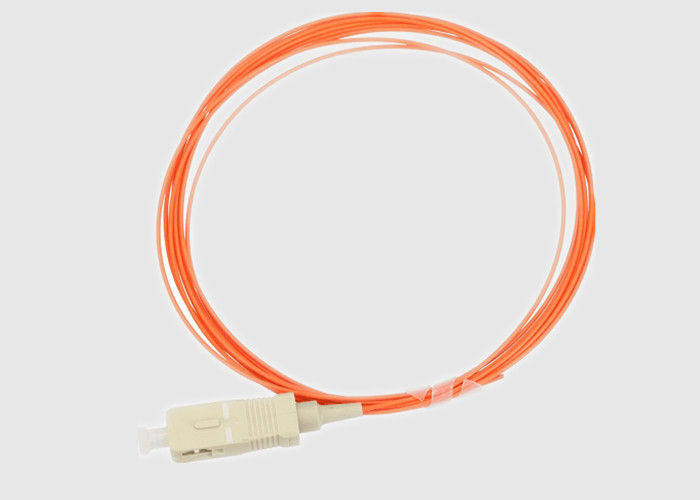

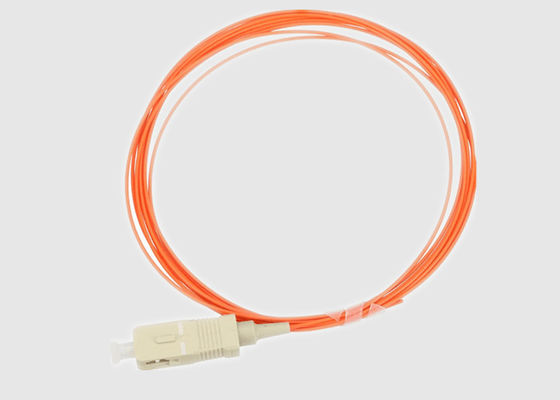

SC/PC Multimode Fiber Optic Pigtail OM3 Orange Jacket 50/125nm simplex
Basic Information:
Our Pigtail fiber optics are an excellent option to use as a termination of the cables you are installing, where you will get an unmatched quality in the termination of the link and save time in the organization of the fibers within an optical distributor.
The quality of our Pigtail fiber optics is guaranteed since all are verified by measurement tests in order to ensure compliance with the established measurement parameters.
We also offer 6 and 12 piece kits that come configured according to the color code TIA-598-A:
1-6: Blue, Orange, Green, Brown, Grey, White
7-12: Red, Black, Yellow, Purple, Pink, Aqua high
Features And Benefits of SC Pigtails
Applications of SC/APC Single Mode Pigtails:
Specification &Technology Parameters:
| Item | SM (Single-Mode) | MM (Multimode) | |||
| Fiber Cable Type | G625D/G655/G6571A/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| IL(dB) | ≤0.3 | ≤0.1 | |||
| Cable Type | Simplex, Duplex, Fan-Out | ||||
| Connector Type | LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc. |
||||
| Cable OD (um) | 0.9/1.6/1.8/2.0/2.4/2.8/3.0 | ||||
| End-face Type | PC | UPC | APC | UPC | UPC |
| Retun Loss(dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Mating Times | >1000 | ||||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
SC /PC Single Pigtails Specification:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3; MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥45 | ≥55 | ≥60 |
| MM | dB | ≥36(Exclusive APC Connector ) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
SC Ordering Information:
| OFC | -X | -XX | -XX | -XX | -XX | -XX |
| S: Simplex D: Duplex | SA:SC/APC SC:SC/UPC SP:SC/PC | SA:SC/APC SC:SC/UPC SP:SC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
More SC Connector Options:
