Product Details:
|
| Model Name:: | FC Fiber Single Mode Pigtail | Connector Type: | FC Connector |
|---|---|---|---|
| Strand Count: | 4, 6, 8, 12, 24, 48 Fibers Optional | Cable Jacket: | PVC/LSZH/OFNP |
| Cable Material: | PVC, OM1, OM2 Or OM3 Optional | Cable Length: | 1M,2M,3M... |
| Cable Color: | Yellow, Aqua, Purple, Violet Or Customized | Fiber Type: | SM/OM1/OM2/OM3/OM4 |
| Cable Mode: | Single Mode Or Multi Mode | End Face Type: | PC/UPC/APC |
| Highlight: | 2M Single Mode Fiber Pigtail,2M Fiber Optic Pigtail,2M optical fiber pigtail |
||

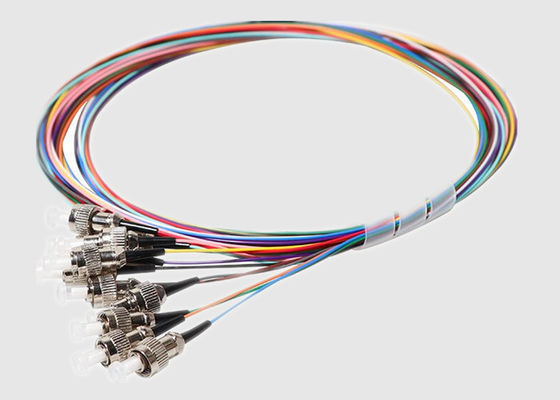

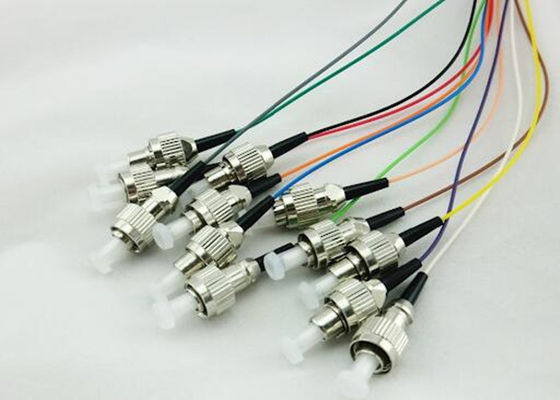

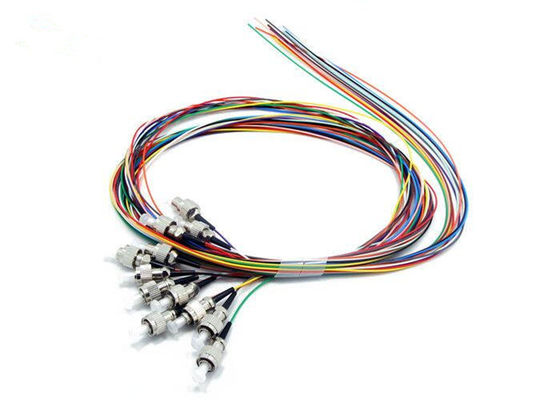

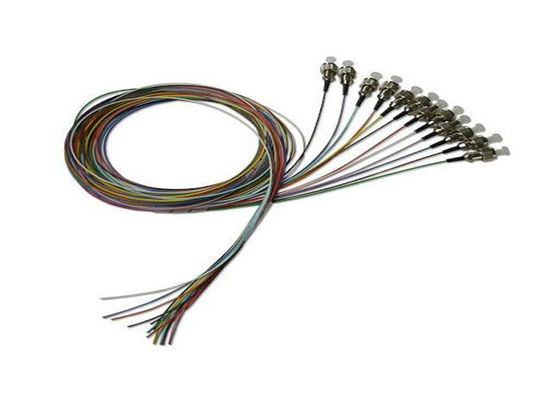

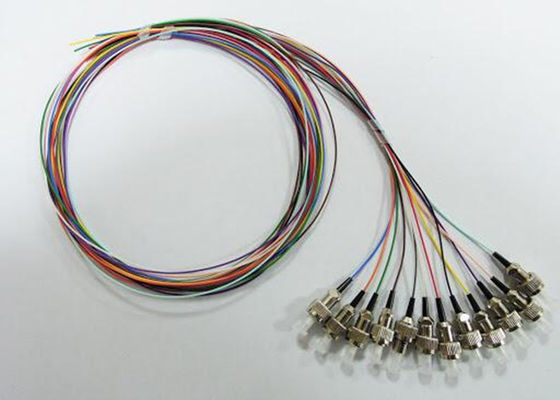

Free Samples 12 Fiber 12 Color Fan Out FC Fiber Single Mode Pigtail
Basic Information:
12 Fiber 12 Color Fan Out Fiber Optic Pigtail is designed for patch panels or cable ducts where save space is required. typical connectors used are SC/ST/FC/LC, single mode or multimode, UPC/APC/PC polished types, at the other end of the fan-out fiber optic pigtail, sometimes there is MTP/MPO connectors, sometimes without termination of fiber optic connectors.
Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The ribbon fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.
Features And Benefits of FC Pigtails
Applications of FC/APC Single Mode Pigtails:
Specification &Technology Parameters:
| Item | SM (Single-Mode) | MM (Multimode) | |||
| Fiber Cable Type | G625D/G655/G6571A/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| IL(dB) | ≤0.3 | ≤0.1 | |||
| Cable Type | Simplex, Duplex, Fan-Out | ||||
| Connector Type | LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc. |
||||
| Cable OD (um) | 0.9/1.6/1.8/2.0/2.4/2.8/3.0 | ||||
| End-face Type | PC | UPC | APC | UPC | UPC |
| Retun Loss(dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Mating Times | >1000 | ||||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
12 Fiber Pigtails Specification:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥45 | ≥50 | ≥60 |
| MM | dB | ≥36(Exclusive APC Connector ) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
FC Ordering Information:
| OFC | -X | -XX | -XX | -XX | -XX | -XX |
| S: Simplex D: Duplex | FA:FC/APC FC:FC/UPC FP:FC/PC | FA:FC/APC FC:FC/UPC FP:FC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
