Product Details:
|
| Model Name:: | Multimode Fibre Pigtails | Fiber Mode: | 50/125um |
|---|---|---|---|
| Fiber Count: | Duplex | Cable Jacket: | PVC/LSZH/OFNP |
| Cable Diameter (mm): | 0.9mm,2.0mm | Cable Length: | 1M, 2M, 3M,20M,100MOr Customized |
| Cable Color: | Yellow, Aqua, Purple, Violet Or Customized | Insertion Loss: | SM <0.2dB |
| Repeatability: | SM <0.2dB | Tensile Strength: | F200N |
| Highlight: | OM1 multimode fiber pigtail,50/125um multimode fiber pigtail,50/125um om1 fiber pigtail |
||

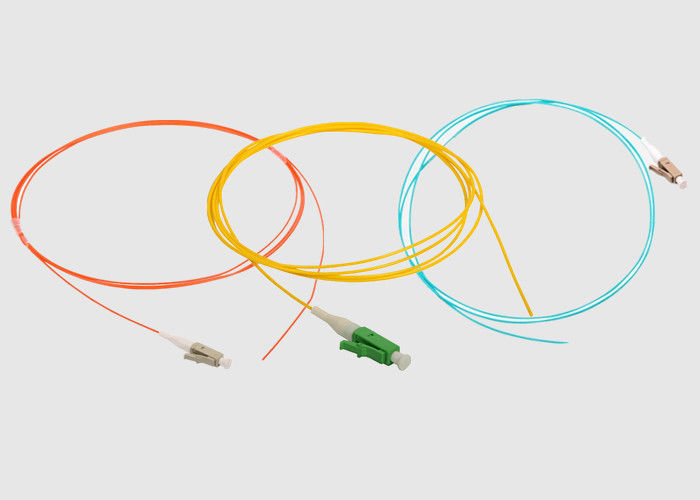

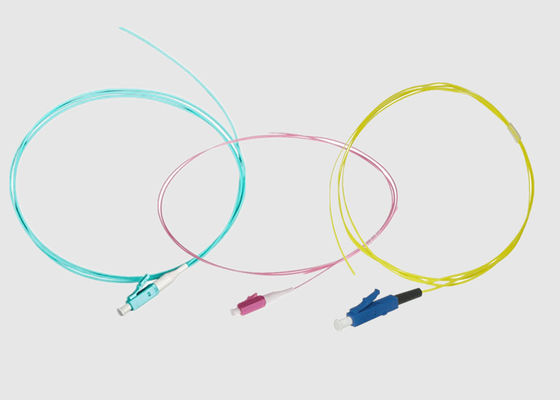

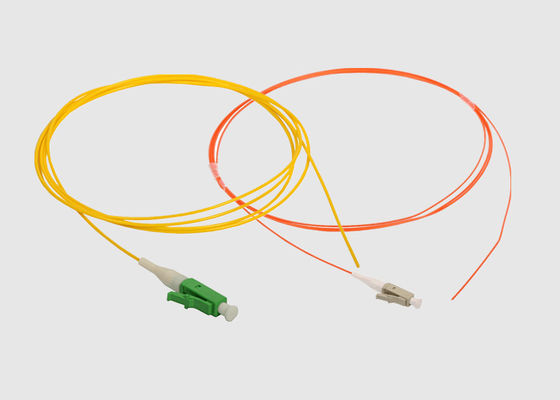

APC 3 Meter 10 Gb 50/125um PVC OM1 LC Multimode Fibre Pigtails
Basic Information:

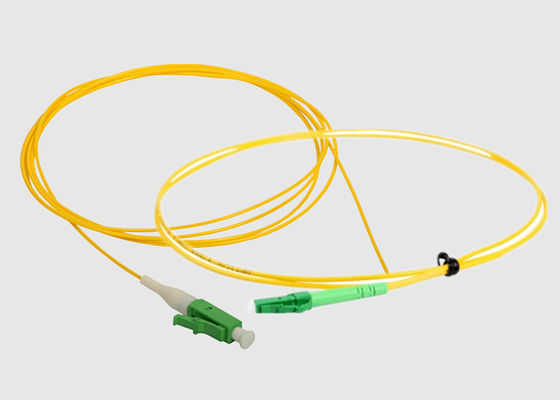

A high-quality Single-mode, OS2, 9/125 Fiber Optic Pigtail with LC/APC Connectors. Ideal for fusion splicing, they are quality tested to meet or exceed industry standards while adhering to only the most stringent performance specifications.
The connector side of the pigtail is used to link the equipment, while the other side is fusion spliced together with the fibre cable. By splicing together the fibre glasses, it can reach a minimum insertion loss.
Features And Benefits of LC Pigtails
Applications of SC/APC Single Mode Pigtails:
Specification &Technology Parameters:
| Item | SM (Single-Mode) | MM (Multimode) | |||
| Fiber Cable Type | G625D/G655/G6571A/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| IL(dB) | ≤0.3 | ≤0.1 | |||
| Cable Type | Simplex, Duplex, Fan-Out | ||||
| Connector Type | LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc. |
||||
| Cable OD (um) | 0.9/1.6/1.8/2.0/2.4/2.8/3.0 | ||||
| End-face Type | PC | UPC | APC | UPC | UPC |
| Retun Loss(dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Mating Times | >1000 | ||||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
LC/UPC Single Pigtails Specification:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3; MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥45 | ≥55 | ≥60 |
| MM | dB | ≥36(Exclusive APC Connector ) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
LC Ordering Information:
| OFC | -X | -XX | -XX | -XX | -XX | -XX |
| S: Simplex D: Duplex | LA:LC/APC LC:LC/UPC LP:LC/PC | LA:LC/APC LC:LC/UPC LP:LC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
